XS8C4A1MPG13, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 20 mm Detection, 20 → 264 V ac/dc, IP65, IP67,, Индуктивный датчик приближения

Telemecanique Inductive Proximity Sensors XS.

Telemecanique Inductive Proximity Sensors XS series allow you to detect all types of objects in all applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

OsiSense inductive proximity sensors are purely for detecting any metal objects up to 60 mm and include an oscillator with windings (an alternating magnetic field is generated in front) making up the sensing phase.

Styles Available.

• Flush and Non-Flush (shielded and non-shielded).


• Flat form.


• Short and long body.


• PNP and NPN versions (compatible with PLCs and controllers).


• 2 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

• Railway. Mobile equipment. Lists and escalators. Hoisting. Material handling, conveying, logistics.


• Material working, machine tools. Packaging. Food and beverage. Robotics.

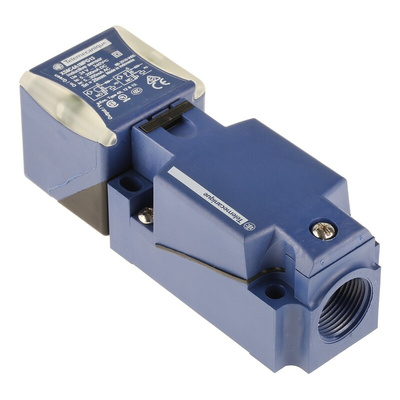

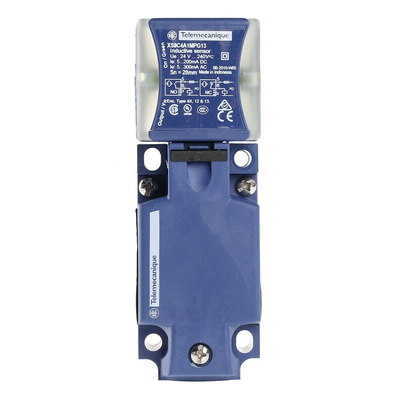

XS8C4A1MPG13 General Purpose Inductive Proximity Sensor.

• XS8 Sensor.


• Design form, block - 40 x 40 x 117.


• Size 117 mm.


• Fixed body, flush mountable.


• Made from Plastic, PBT Front.


• Discrete output, 2-wire.


• Nominal sensing distance 20 mm, 5-positions turret head detection.


• 1 NO or 1 NC (programmable) discrete output, AC/CD circuit.


• Screw clamp terminals (4 x 1.5mm).


• [Us] rated supply voltage 24 to 240 V ac (50/60 Hz), 24 to 240V dc.


• 2 x LED (yellow) output state, LED (green) supply on.


• Length and length – 40 mm, width – 117 mm


• Net weight 0.244 kg.


• IP67 to IEC 60529 protection, IP65 to IEC 60529 IP69K to DIN 40050.


• CE marked.

Certificates.

• UL, CSA, CCC.
