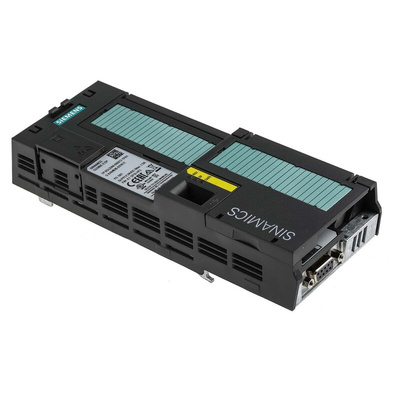

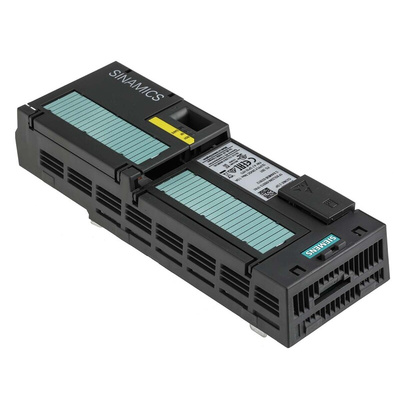

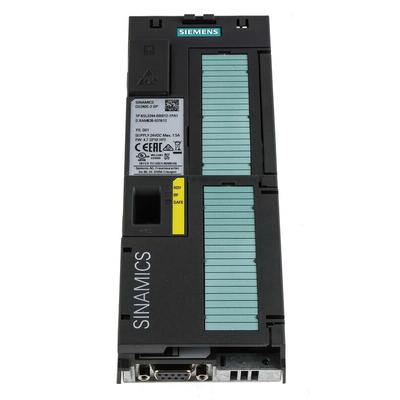

6SL3244-0BB12-1PA1, Siemens Control Unit, 24 V dc, 1.5 A, SINAMICS G120 Series

Siemens Control Unit, 6 x Digital Inputs, 1 x Failsafe Input - SINAMICS G120 Series - 6SL3244-0BB12-1PA1

Get your power supply and automated machines working in harmony with this control unit from Siemens. It sits between your SINAMICS PM240 module (217-6624) and your motor. Closed-loop vector, flux and torque controls enable you to operate your moving, processing and pumping equipment efficiently. An encoderless function means there's no need to install sensors in your drive system. The device comes with a failsafe digital input, so you'll have no trouble integrating an emergency stop into your setup. As it works reliably in humidity levels up to 95%, this is a suitable option for food storage, water treatment and HVAC applications.

Features & Benefits

• Wide operating temperature range between -10°C and +55°C to handle harsh conditions
• Support for PROFIBUS protocol allows communication with your central controller so you can monitor operations

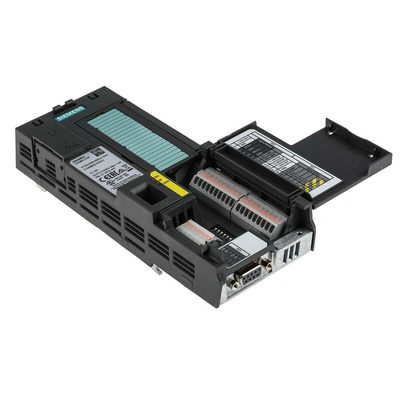

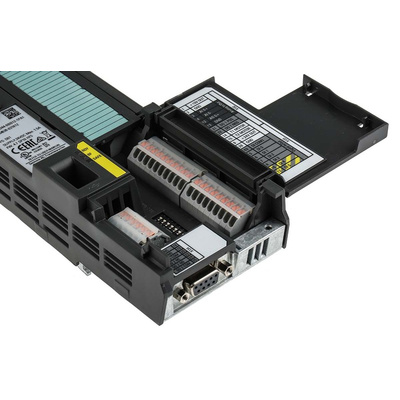

• Terminal space for hooking up a motor temperature sensor, boosting your monitoring capabilities

Can I set parameters directly from the front of the control unit?

Yes. By adding a user-friendly operator control panel (190-9742), you can set and adjust parameters and diagnose faults in just a few button presses.
