RS PRO SPST, On-None-Off Rocker Switch Panel Mount, Клавишный переключатель

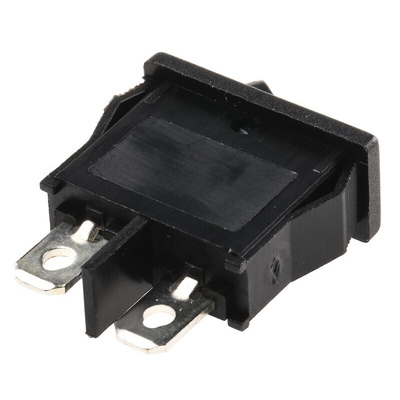

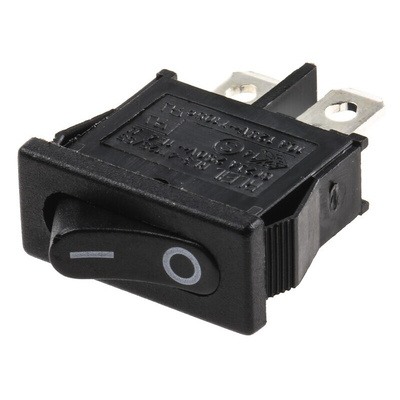

RS PRO Single Pole Single Throw (SPST), On-None-Off Rocker Switch Panel Mounting

Need to install a power switch where panel space is tight? Use this RS PRO slimline rocker switch. It only requires a small cut-out width of 19.6 mm, so it's easier to squeeze onto a compact circuit.
It comes with quick-connect terminals and snap-in mounting to speed up your installation. With an electrical life of more than 10000 cycles, this switch is a durable option for appliances you use frequently.
This product has been thoroughly tested and meets the UL (Underwriters Laboratories) safety standard 94V-2 for flammability of plastic appliance components. Rocker style switches are suitable for a wide range of domestic and commercial equipment, such as audiovisual equipment, laboratory equipment and computing peripherals.

Features and Benefits

• Voltage rating of 250 V AC
• Black actuator colour
• Rectangular actuator shape
• Nylon case material
• Single pole single throw (SPST) contact configuration
• Contact current rating of 5 A
• Copper alloy contact material
• Contact resistance of 30 mΩ
• Not illuminated
• On (symbol)
• Off (symbol) legend text
• Mechanical life of 10000 operations
• Panel mounting type
• Minimum operating temperature of -85°C
• Panel cut-out size of 6.8 (height) x 19.6 mm (width)
• On-None-Off switch operation
• Quick-connect terminal type
