PYF14ESSB, Omron PYF14 14 Pin 250V ac DIN Rail Relay Socket, for use with MY2, MY4, Контактная колодка

PY Series DIN Rail Relay Sockets

Rising terminals mean secure clamping of up to 2 x 2.5mm cables per terminal
Choice of position for common terminals
Easy to use labelling facility that does not cover the screw terminals
Slim design, 27mm wide
Double terminal numbering
Creepage & clearance compliant to VDE 0110
Retaining clips available separately
Suitable for 8 and 14 pin Relays
Rated up to 12A and 300V
Operating temperature range -25 to + 85°C

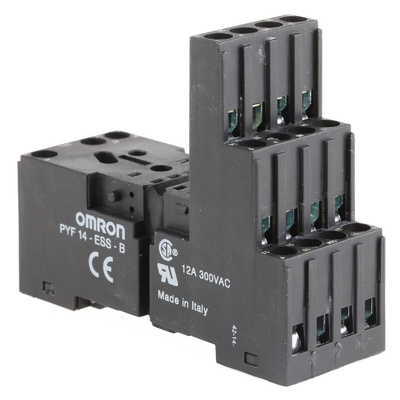

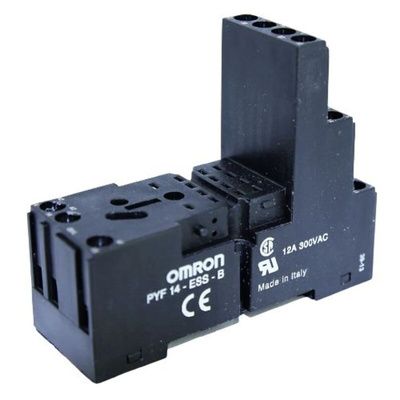

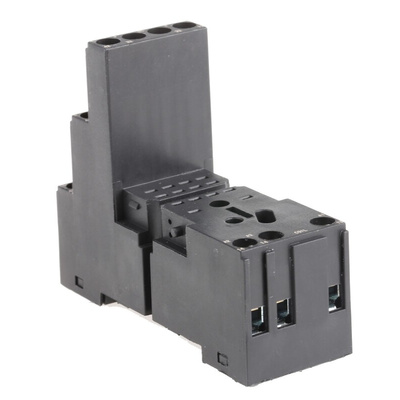

OMRON Relay Socket, 83 (H) x 27 (W) x 61mm (D), 66g Weight - PYF Series - PYF14ESSB

Clamp relays to your electric circuit with this handy socket from OMRON. It's a front-mounting unit with rising terminals that accommodate 8-pin and 14-pin conductors. You can use this versatile piece of gear with a relay from the MY2 and MY4 ranges. A current rating of 12A makes it just the right fit to handle heavy-duty electrical systems like lighting fixtures and control panels. Mount it in a snap by clipping it to a DIN rail.

Features & Benefits

• Dielectric separation between terminals removes the need for insulating sheet
• Broad dimensions of 83 (H) x 27 (W) x 61mm (D) offer labelling space without blocking terminals
• Durable performance in harsh environments as it withstands operating temperatures between -25°C and +85°C

Applications

• Automotive manufacturing
• Agricultural equipment
• Power plants

What's the IP rating of this component?

It's IP20-rated, indicating it's touch-proof and keeps out dust or objects over 12mm in size.

How do I install a relay in this socket?

The socket has screw terminals, so you can pair it with your relay by screwing your wires to the unit's contact points.

Datasheet

Datasheet - PYF14ESSB
