121611 C22-PVT45P-K02, Eaton C22-PVT Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 2NC

Eaton Compact Emergency Stop Push Button - C22 Series

This range of C22 emergency stop push buttons from Eaton offers simplified and efficient installation due to the “monoblock” technology. The “monoblock” technology refers to the contact blocks being built-in to each emergency stop button device removing the need to buy and assemble added back panel components. This all in one unit also eliminates the need for self-monitoring contact blocks. The C22 compact series of emergency stop buttons are designed with safety in mind and offer durability and reliability throughout a wide range of applications.

Typical Applications

Designed for electrical automation and control environments, emergency stop button switches are commonly found in button stations where users may be sitting at a control desk, within suspended operator panels or in a control panel. Suitable for a wide range of emergency stop and safety applications including factory conveyor belts, escalators and control panels.

Features and Benefits

• Ergonomic mushroom head button design provides ease of use
• 22.5 mm cutout diameter
• Mechanical lifespan of over 50,000 cycles
• Operating temperature of -25 →+70°C
• Low profile plastic design gives an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button is supplied as a complete unit, enabling easy installation for worldwide applications
• Twist to reset and key reset models available
• C22 range features adaptable functionalities

What is the difference between a push button for emergency stop and a general-purpose push button?

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply switching modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

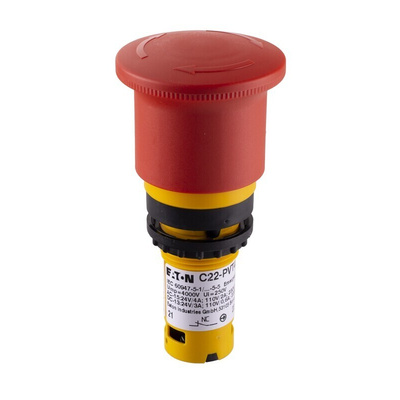

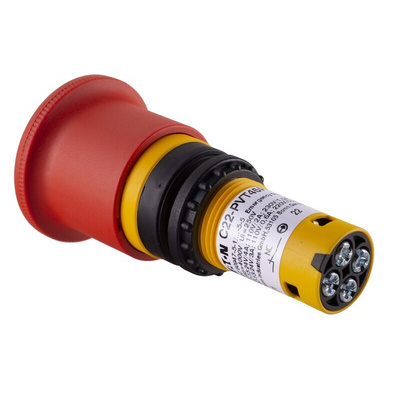

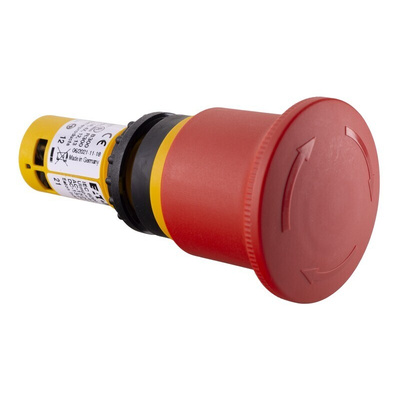

Eaton Red Emergency Stop Push Button, 2NC, 22.5mm Diameter - C22-PVT Series - 121611 C22-PVT45P-K02

When you need to shut down equipment in the event of a hazard, turn to this emergency stop push button from Eaton. Its bright red button and yellow base make it easy to spot and clearly identify it as an emergency device. The unit has a turn-release design, so it's activated when pushed in and released when turned for ease of operation. A long mechanical service life of 1,000,000 operations makes it a long-lasting choice. Install this push button in your control panel to enhance safety in your industrial workplace.

• Plastic body material is resistant to impact and wear
• Operating frequency of less than or equal to 300 cycles per hour for reliable use
• Screw connectors for a simple and secure electrical connection
• Integrated fuse provides protection from short circuits for enhanced electrical safety

How do I mount this push button?

This device uses monoblock technology. This means it has a built-in contact block, eliminating the need for an additional component. Simply insert the push button into a 22.5mm cutout on your panel and attach the electrical connectors for quick and simple installation.

Part of the Eaton E-Stop family
