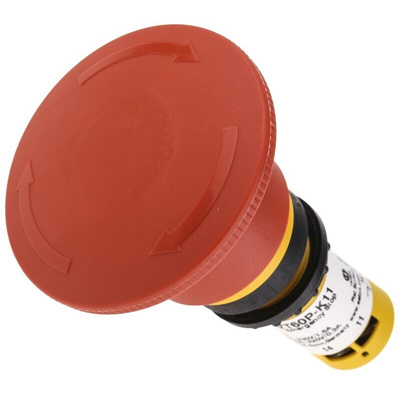

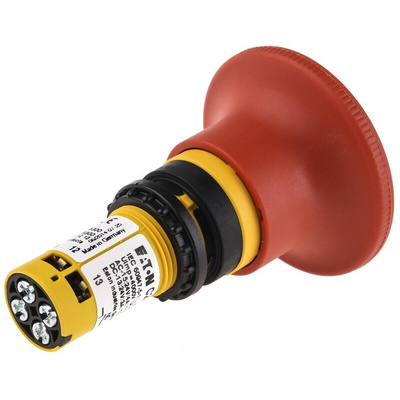

121612 C22-PVT60P-K11, Eaton C22-PVT Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1 NO + 1 NC, IP67, IP69K

Eaton Compact Emergency Stop Push Button - C22 Series

This range of C22 emergency stop push buttons from Eaton offers simplified and efficient installation due to the “monoblock” technology. The “monoblock” technology refers to the contact blocks being built-in to each emergency stop button device removing the need to buy and assemble added back panel components. This all in one unit also eliminates the need for self-monitoring contact blocks. The C22 compact series of emergency stop buttons are designed with safety in mind and offer durability and reliability throughout a wide range of applications.

Typical Applications

Designed for electrical automation and control environments, emergency stop button switches are commonly found in button stations where users may be sitting at a control desk, within suspended operator panels or in a control panel. Suitable for a wide range of emergency stop and safety applications including factory conveyor belts, escalators and control panels.

Features and Benefits

• Ergonomic mushroom head button design provides ease of use
• 22.5 mm cutout diameter
• Mechanical lifespan of over 50,000 cycles
• Operating temperature of -25 →+70°C
• Low profile plastic design gives an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button is supplied as a complete unit, enabling easy installation for worldwide applications
• Twist to reset and key reset models available
• C22 range features adaptable functionalities

What is the difference between a push button for emergency stop and a general-purpose push button?

A general-purpose push button switch is used for controls, e.g., starting machine operation or simply switching modes. However, a push button switch for emergency stop is mainly used as a safety measure to stop hazardous events.

Eaton Monoblock Emergency Stop Push Button, 4A Current, 22.5mm Cutout - C22-PVT Series - 121612 C22-PVT60P-K11

Need to quickly stop a machine in the event of an emergency? Turn to this emergency stop push button from Eaton. This unit uses monoblock technology, meaning it comes with a built-in contact block for quick installation. Thanks to its mechanical lifespan of 1,000,000 cycles, you can rely on it for long-term performance. Use this push button to protect personnel and equipment from mechanical hazards in your production plants and conveyor systems. Its broad operating temperature between -25°C and +70°C means it can withstand harsh settings.

• Operational frequency of ≦300 cycles per hour for reliable use
• Cutout diameter of 22.5mm to fit in control panels
• Shock resistance to prevent false activation in challenging operations
• Supply current of 4A for energy efficiency

Can I use this push button in an industrial environment?

Yes, you can. The push button's IP69K rating indicates it's completely dustproof and protected against steam and water jets. For added durability, it also comes with IP67 protection, meaning it can withstand water immersion between 15cm and 1m.

Part of the Eaton E-Stop family
