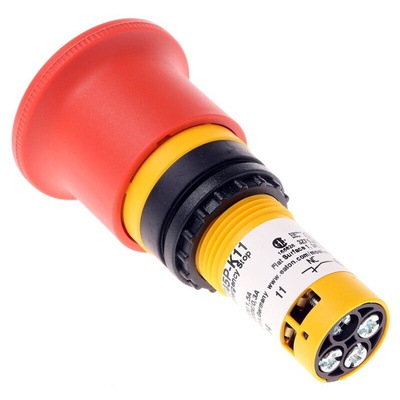

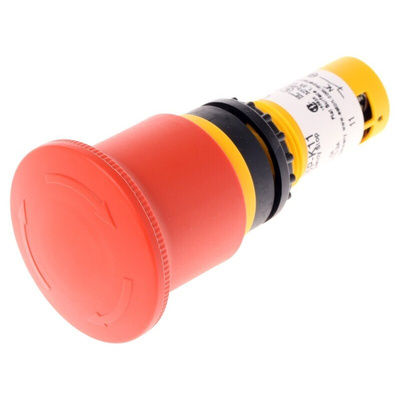

121610 C22-PVT45P-K11, Eaton C22-PVT Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1 NO + 1 NC, IP66, IP67, IP69

Eaton Emergency Stop Push Button, Monoblock Type, 4A Supply Current - C22-PVT Series - 121610 C22-PVT45P-K11

Put the brakes on potential accidents in your workplace by using this emergency stop push button from Eaton. Its monoblock design means it comes with a built-in contact block at its base, making it a reliable one-stop solution for machine control. An industry-standard cutout diameter of 22mm ensures it's a cinch to fit it into your existing control panel. Thanks to its integrated mechanical shock resistance, you can rest assured that this E-stop unit can take the pace even in demanding conditions.

• Supply current of 4A for use in low-power systems
• Broad operating temperature range between -25°C and +70°C to withstand harsh settings
• Mechanical lifespan of >
50,000 cycles for lasting use
• Bright red mushroom head for quick identification

How do I release this push button?

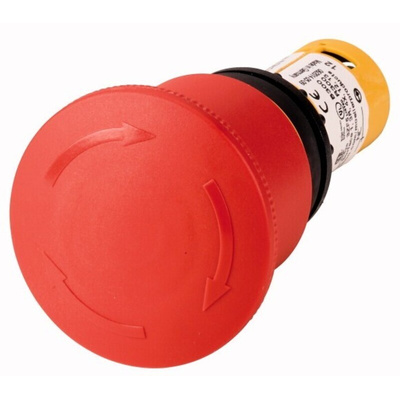

To release this push button, simply twist its mushroom head. The arrow indicator on the head helps guide you in the proper direction.

How often can I use this stop push button?

Thanks to the operating frequency of ≦300 cycles per hour, you can use this push button constantly without the risk of breakdown.

Part of the Eaton E-Stop family

Note

Eaton formerly known as Moeller
