RS PRO, jack Panel Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

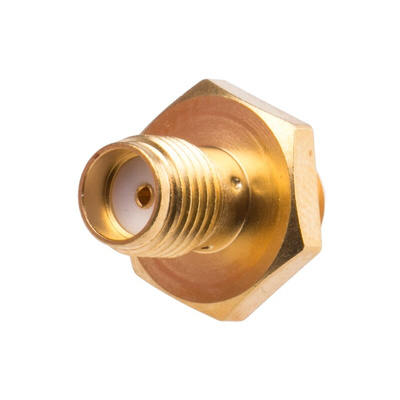

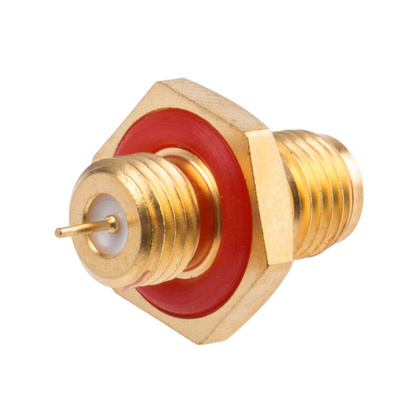

RS PRO 50 Ω Straight Panel Mounting, SMA Connector Bulkhead Fitting, Jack

Need a secure way to connect your coaxial cables? Turn to this RS PRO straight panel mounting SMA (SubMiniature version A) connector. It provides a tight and secure connection that allows data to be transmitted clearly and reliably, without interference or accidental loosening.
The connector has an Ingress Protection (IP) rating of IP68 and features waterproof sealing between the insulators, inner and outer conductors and connector body. This means it can withstand submersion in water for up to an hour without damage to the connection. There's also panel sealing between the connector body and panel mounting hole for additional safety.
For increased reliability, the plug features a highly conductive gold contact material. It's also resistant to wear and corrosion, so it can withstand repeated use in harsh industrial environments.

Features and Benefits

• Straight body orientation
• Gold body plating
• Bulkhead
• SMA (SubMiniature version A) coaxial connector type
• Gold contact material
• Beryllium copper contact plating
• Female gender
• Impedance of 50 Ω
• Panel mounting type
• Operating frequency of 0 to 18 GHz
• Solder termination method
• Voltage rating of 335 V
