RS PRO, jack Panel Mount SMA Connector, 50Ω, Solder Termination, Right Angle Body, Разъем

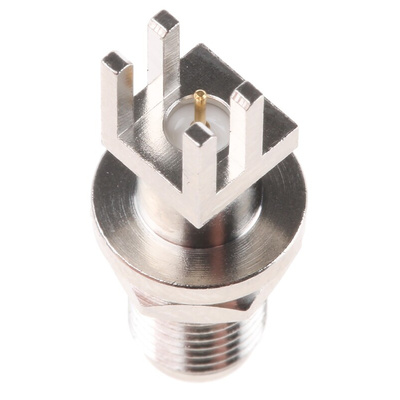

RS PRO 50 Ω Right Angle Panel Mounting, SMA Connector Bulkhead Fitting, Jack

Use this RS PRO SMA (SubMiniature version A) to securely connect coaxial cables. It has a gold-plated copper body and contacts for high conductivity and wear resistance, ensuring a strong and reliable connection you can trust for a long time.
To keep moisture and debris from interfering with the connector, it has waterproof sealing between the insulators, inner and outer conductors and connector body. This sealing is Ingress Protection (IP) IP68 rated, which means the fitting can be submerged for up to an hour and still won't let liquid in. There's also panel sealing between the connector body and panel mounting hole for additional security.
This connector has a right-angled body orientation, which means it's easy to install in small or awkward areas. It's commonly used to connect WiFi and radio equipment.

Features and Benefits

• Right angle body orientation
• Nickel body plating
• Bulkhead
• SMA (SubMiniature version A) coaxial connector type
• Gold contact material
• Beryllium copper contact plating
• Female gender
• Impedance of 50 Ω
• Panel mounting type
• Operating frequency of 0 to 6 GHz
• Solder termination method
• Voltage rating of 500 V

Dimensional Drawing

RS Pro Datasheet
