1821067, Phoenix Contact PLW 16-6/ 3-10 Series Feed Through Terminal Block, 3-Contact, 10mm Pitch, Panel Mount, 1-Row, Push Lock

Phoenix Contact COMBICON PLW 10mm Feed-Through Panel Mount Terminal Blocks

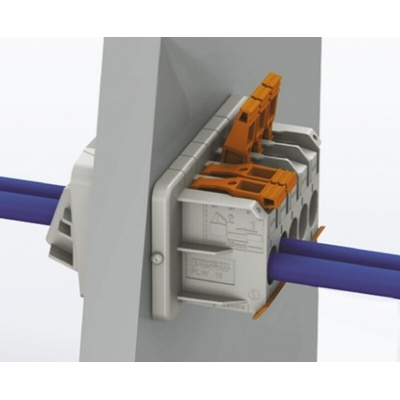

A range of 10 mm Pitch Feed-Through Panel Mount Terminal Blocks from Phoenix Contact. The external side of the 10 mm Pitch Feed-Through Panel Mount Terminal Block has a Push-Lock connection and the internal side an angled Quick-fit Push-in connection.
The connection capacity of these 10 mm Pitch Feed-Through Panel Mount Terminal Blocks are: Solid 2.5-16 mm², Stranded 2.5-25 mm² (14-4 AWG).
The inflammability class for the 10 mm Pitch Feed-Through Panel Mount Terminal Block is UL 94 V0.

Phoenix Contact Feed-through Terminal Block, 3-way - PLW 16-6/3-10 - 1821067

Use this Phoenix Contact 3-way terminal block to connect conductors simply and efficiently. It's a modular device with a compact size that saves space in your electrical components, and it offers easy through-hole mounting so you can use it with printed circuit boards (PCBs). Straightforward push-in connections enable tool-free installation that's easy to adjust or undo.
This terminal block's housing is made from grey polyamide material (PA66). This is certified to UL (Underwriters Laboratories) 94 V-0 standards for flame resistance, meaning it will burn for no longer than 10 seconds on exposure to a naked flame. It's also highly insulating, so it ensures reliable circuits and protects users from electric shocks.
With a high voltage rating of 1 kV, this block is equally suited to both everyday applications and more demanding tasks. You'll find it in devices like laptop computers and games consoles, as well as circuitry in industrial equipment.

• Straight body orientation
• Male gender
• Polyamide material
• Panel mounting type
• 3 contacts
• Single row
• Pitch of 10 mm
• Dimension of 54.8 (length) x 43 (width) by 35.7 mm (depth)
• Screw termination method
• Current rating of 41 A

Phoenix Contact COMBICON 10mm PCB Terminal Blocks

Panel feed-through terminal block - PLW 16-6/ 3-10 - 1821067

Dimension Sheet - 1821067

Catalogue - Terminal Block
