ELITE-S4L Wireless Remote Control kits

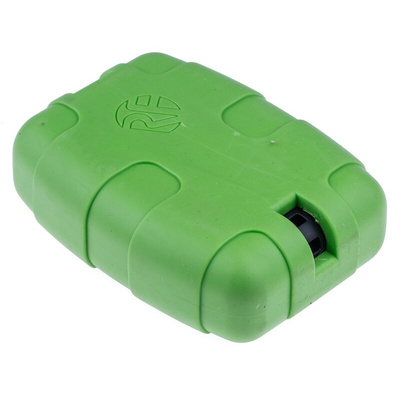

The ELITE-S4L system is a very robust and easy to use remote control system. Each of the four relay outputs on the ELITE remote control receiver can be set to operate in a timed, momentary or latching mode. Two kits are available: the ELITE-S4L comes with an ELITE-T8 short-range (150m) transmitter and the ELITE-XS4L comes with an ELITE-XT6 long-range (1000m) transmitter. The ELITE-RXL receiver can operate from a 12 to 32Vac/dc or 230Vac supply.

No of Tx buttons: 4
No of Rx channels: 4
RF Carrier frequency: 869.5MHz ISM band
RF Power Output: +20dBm (ELITE-XS4L), +5dBm (ELITE-S4L)
Line-of-Sight Range: 1000m (ELITE-XS4L), 250m (ELITE-S4L)
High-security RF protocol
Receiver outputs: 4 x SPDT relays rated 5A @ 230Vac
Transmitter power supply: 3 x AAA battery (ELITE-XS4L), CR2032 coin cell (ELITE-S4L)
Receiver power supply: 12/24Vac/dc or 230Vac
Operating temperature range: -10 to +50°C
Transmitter dimensions: 90 x 54 x 27mm (ELITE-XS4L), 86 x 54 x 7mm (ELITE-S4L)
Receiver dimensions: 267 x 148 x 78mm
Transmitter enclosure rating: IP68 (ELITE-XS4L)
Receiver enclosure rating: IP68
Applications: Industrial control, Electric gates, Roller shutter doors, Garage doors

RS Product Codes
125-8176 FOBBER-8T6 - Fobber 6 Button, 6 Channel Remote Control Key Fob to use with 793-4433
860-7270 TRAP-T4 Rugged transmitter, 4-button to use with 793-4436

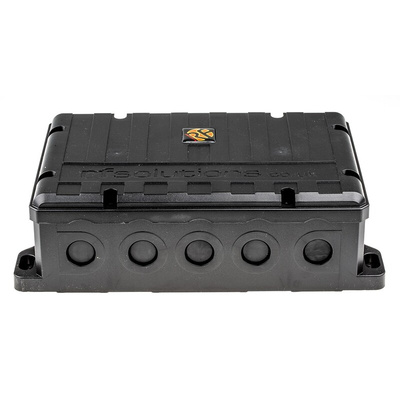

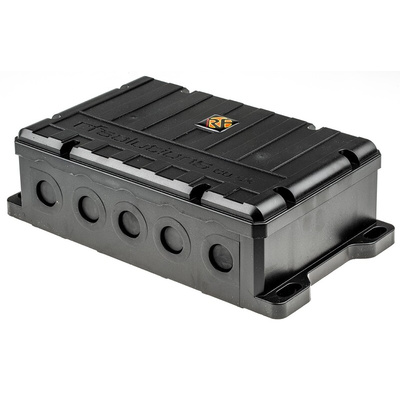

793-4442 ELITE-RXL Receiver, 4-channel

Approvals

CE

ELITE-Low Voltage / Dry contact Remote Control System
