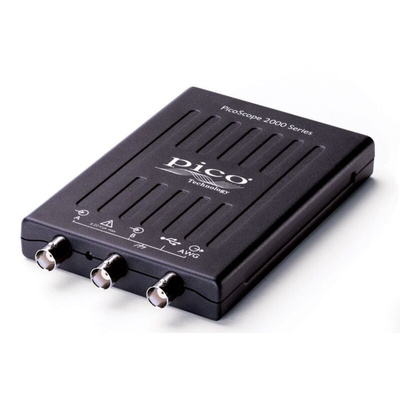

PICOSCOPE 2205A, Pico Technology 2205A PicoScope 2000 Series Analogue PC Based Oscilloscope, 2 Analogue Channels, 25MHz - RS Calibrated

PicoScope 2200A Series PC Oscilloscopes

The PicoScope 2200A Series PC oscilloscopes are small, lightweight, modern alternatives to benchtop devices. Used on the bench, they take up little space and can sit right next to the circuit under test. Used by engineers on the move, they can easily be fitted into a pocket or laptop bag. Applications include design, test, education, service, monitoring, fault-finding and repair. Pico regularly delivers new functionality through free software upgrades, which are optimised based on customer feedback. PicoScope 6 software (included) enables high-end features such as serial decoding and mask limit testing to be incorporated as standard. The USB connection facilitates printing, copying, saving and emailing field data. The high-speed USB interface provides fast data transfer and USB powering eliminates the need to carry around a bulky external power supply.

Features & Benefits

Benchtop performance in pocket-sized scope
Simple, low-cost solution
2 channels
Fast real-time sampling rates
Equivalent-time sampling (ETS) mode
Built-in arbitrary waveform generator
Advanced digital triggers
Persistence display modes
USB connected and powered
Free software upgrades
Mask limit testing
Serial bus decoding

Note

Software supplied includes PicoScope 6, Windows and Linux SDK, example programs C, Visual Basic, Excel VBA, LabVIEW. PicoScope software PC requirements are Microsoft Windows XP (SP3), Windows Vista, Windows 7 or Windows 8 (not Windows RT). 32-bit or 64-bit.

Approvals

EN 61010-1:2010

Supplied with
type":"Supplied with",

60MHz probes (2), USB cable, Quick Start guide, software and reference CD

Pico PC Based Instruments

PicoScope2000 Datasheet
