RS PRO Female SMA to Unterminated Coaxial Cable, 150mm, Terminated, Кабель

RS PRO Black Female SMA to Unterminated Coaxial Cable, 50 Ω

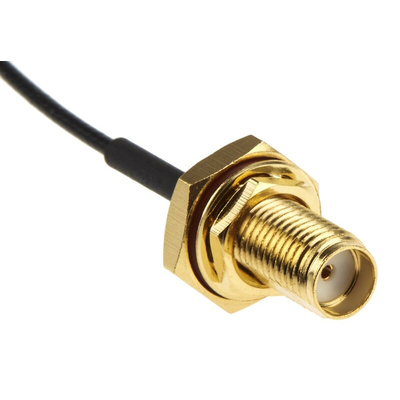

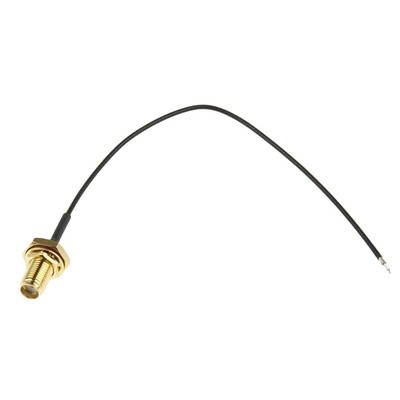

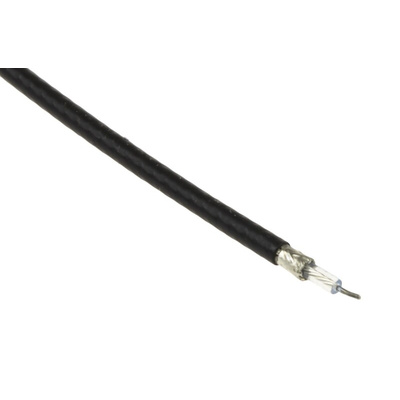

This SubMiniature version A (SMA) connector with tail from RS PRO gives you an SMA connector with the flexibility to decide how it should be attached on the inside. It's a panel mounting connector that can be easily fitted to a hole in the side of your equipment, combined with a flying lead with no connector on the other end. This means that you can fit your own connector or attach it directly to the board inside. The bare end of the cable comes pre-stripped and tinned for convenience and easy connection, whether it's by soldering, crimp connector or clamp.
SMA connectors are suitable for frequencies up to 3 GHz, making this suitable for 2.4 GHz wireless LAN or Bluetooth connections, or for other radio communications systems at a lower frequency. This cable is made to have the standard 50 Ω characteristic impedance.

Features and Benefits

• Coaxial cable shape
• Characteristic impedance of 50 Ω
• Connector A is a female SMA connector
• Connector B is a female unterminated free-end connector
• Length of 150 mm
• Black sheath colour
• Terminated
• Voltage rating of 250 V

RS Pro Datasheet
