Amprobe AM-540-EUR Handheld Digital Multimeter, Мультиметр

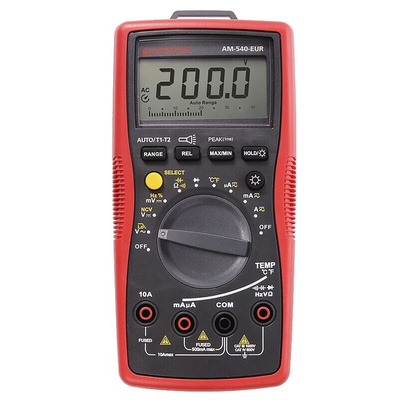

Amprobe AM-540 Advanced HVAC Multimeter

The AM-540 Advanced HVAC Multimeter is specifically designed for the more demanding HVAC applications. The AM-540 measures a complete range of electrical parameters and key functions such as dual thermocouples for taking differential temperature measurements, low pass filter to take accurate measurements on variable frequency drives and capacitance to check motor startup capacitors. It also features microamps for flame sensor troubleshooting and a complete range of electrical parameters. With built-in flashlight and VolTect ™ non-contact voltage detection, the AM-540 is the choice multimeter for a professional HVAC technician.

Features and Benefits

• AC/DC Voltage up to 1000V, AC/DC current, resistance, frequency, capacitance, temperature, duty cycle
• CAT IV 600V, CAT III 1000V
• Dual thermocouple to take simultaneous temperature readings on low and high side of an HVAC system
• Low pass filter for variable frequency drives
• VolTect Plus™ Non-contact voltage detection
• Audible continuity
• Diode test
• Dual reading backlit LCD display with analog bar graph
• Data hold
• Max/min memory
• Peak hold (crest)
• Relative zero mode
• Built in work light
• Built in test leads storage and “third hand test lead holder
• Warning against improper test leads connection
• Auto and manual ranging
• Auto power off and low battery warning

Standards

CAT IV 600V, CAT III 1000V

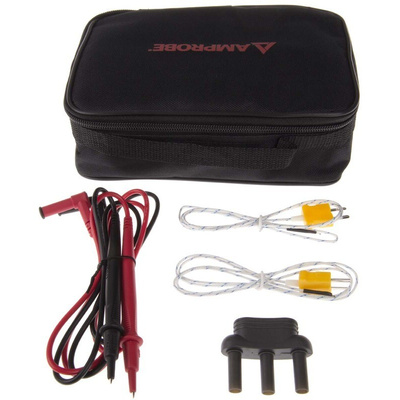

Supplied with

• 1 x 9V (6F22) battery installed
• Test leads
• 2 x Type-K probe
• Temperature adaptor
• Velcro strap
• Carrying case
• Users manual
