2903275, Phoenix Contact RIF Series Interface Relay, DIN Rail Mount, 24V dc Coil, 3P-NO, 3-Pole, Реле

RIF 4 Power Relay Module

Professional range of power relays that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.

Easy wiring due to push in connection technology
Easy handling and extension of range
Plug in display/suppressor module
AC and DC versions
2 and 3 contact options
Yellow LED indicator
Varistor or damping diode protective circuit

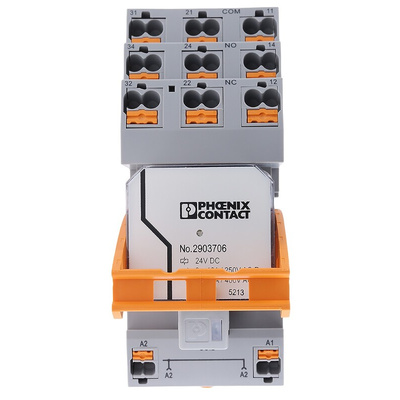

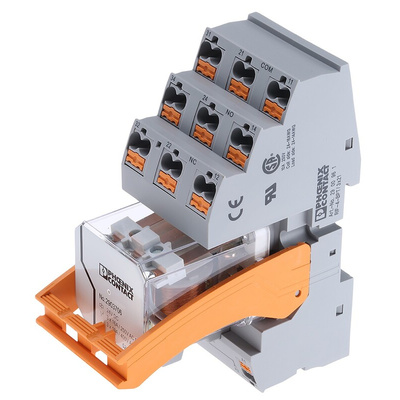

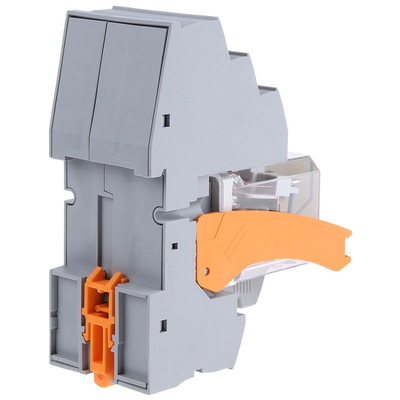

Phoenix Contact Non-Latching Relay Module, 3PNO - RIF-4-RPT-LDP-24DC/3X1- 2903275

Need to control three circuits at once? This Phoenix Contact relay module features three separate poles, so you can power three outputs at the same time with just one switch. It operates when an outside electrical impulse – such as a wall switch or the button on an appliance – magnetises a coil inside the relay to open or close the contacts. This lets you use a low power signal to control a larger load. The normally open, non-latching set-up of this relay means the contacts return to their original open state when the current is turned off.
A polarity protection diode prevents the relay from being damaged by accidental reversal of polarity, while a damping diode reduces voltage spikes. To help with installation, the unit comes pre-assembled with a push-in connection. Non-latching relays are particularly useful for keyboards and other push-button operations.

• Coil voltage of 24 V DC
• Silver alloy contacts for durability
• Contact configuration of 3PNO (three poles, normally open)
• Switching current of 10 A
• Coil power of 1.7 watts
• Coil resistance of 345 Ω
• Plug-in terminal type for easy installation
• DIN rail mounting type
• Operating temperature range of -40°C to +60°C
• Yellow LED (light-emitting diode) operating voltage display
• Mechanical service life of 10,000,000 cycles
