2903278, Phoenix Contact RIF Series Interface Relay, DIN Rail Mount, 24V dc Coil, 3PDT, 3-Pole, Реле

RIF 4 Power Relay Module

Professional range of power relays that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.

Easy wiring due to push in connection technology
Easy handling and extension of range
Plug in display/suppressor module
AC and DC versions
2 and 3 contact options
Yellow LED indicator
Varistor or damping diode protective circuit

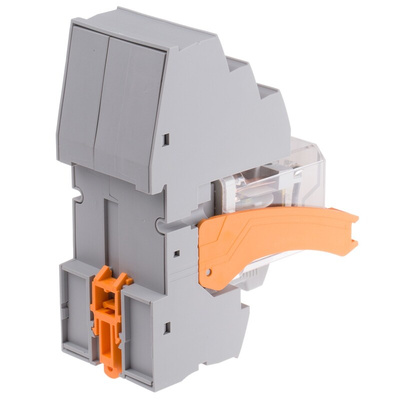

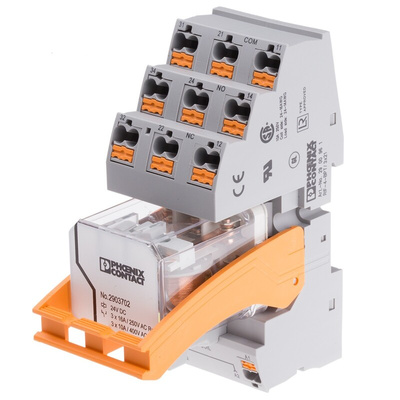

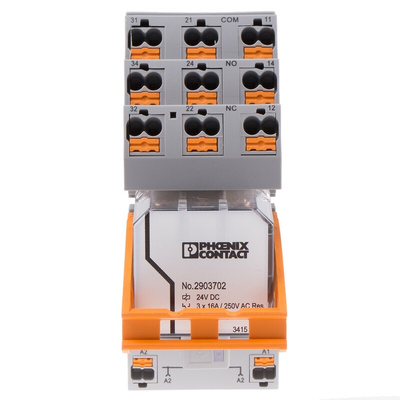

Phoenix Contact Non-Latching Relay Module, 3PDT - RIF-4-RPT-LDP-24DC/3X21- 2903278

This versatile relay module from Phoenix Contact has a 3PDT (three poles, double throw) set up, giving you control over six outputs using one signal. When the relay receives an impulse, the three poles switch from one contact to another in each of the three circuits. Use it to control multiple devices on different circuits at the same time, or to create standby modes and redundancies for safety. Each circuit includes one normally open and one normally closed contact.
Pre-assembled with a plug-in terminal type, this relay is simple to install. Contacts are made of silver alloy for durability and to prevent material transfer when they close. As this is a non-latching relay, the contacts will revert to their normally closed or normally open positions when the power is turned off. This component has a switching current of 10 A and a maximum DC switching power of 240 W.

• Coil voltage of 24 V DC
• Polarity protection diode
• Damping diode to reduce voltage spikes
• Coil power of 1.5 W
• Coil resistance of 430 Ω
• DIN rail mounting type
• Operating temperature range of -40°C to +60°C
• Yellow LED (light-emitting diode) operating voltage display
• Mechanical service life of 10,000,000 cycles
