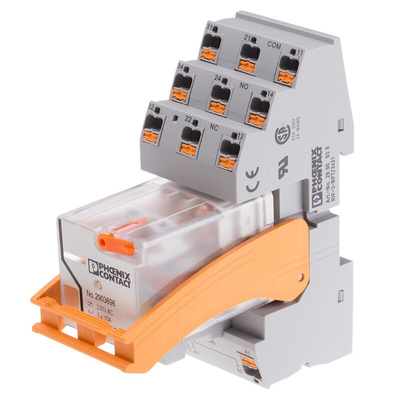

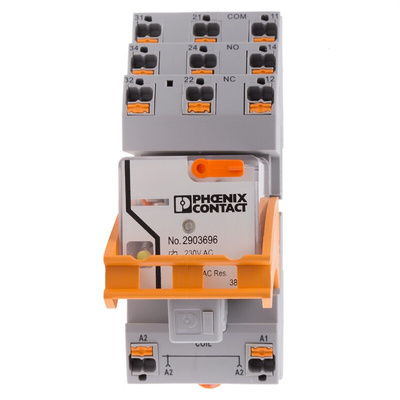

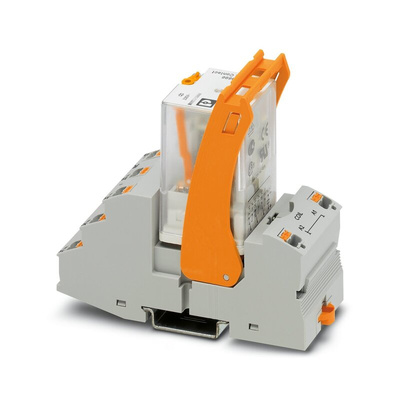

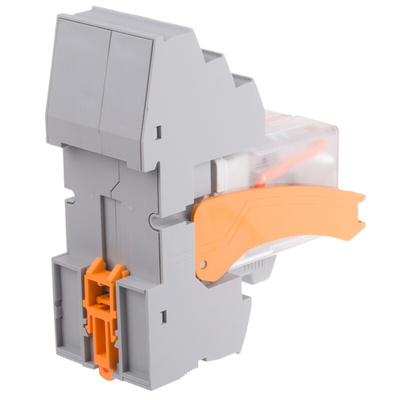

2903292, Phoenix Contact RIF Series Interface Relay, DIN Rail Mount, 230V ac Coil, 3PDT, 3-Pole, Реле

Phoenix Contact Interface Relay, 7.08kΩ Coil Resistance, 2A Switching Current - RIF-3-RPT-LV-230AC/3X21 - 2903292

Bridge the gap between devices with this 3-pole interface relay from Phoenix Contact. It links components with different electric potentials by transmitting digital signals between them to achieve consistent performance. Galvanic isolation guards against interference, so you get reliable communication between controls and instruments.
As the module comes pre-assembled, it's ready to go straight away. Simply clip it onto a DIN rail and plug it in to get on with business. Wiring up is a cinch, thanks to the push-in terminals. For versatility, this unit handles wire sizes between 26 and 16AWG. Highly-conductive silver nickel contacts deliver clear signals and boost efficiency.
For at-a-glance troubleshooting, an LED status indicator lets you know when something's wrong. The integrated varistor protects people and equipment against voltage surges. With a 40 (W) x 103 (H) x 90mm (D) footprint, this device easily squeezes into tight spaces in everything from automated factory processes to medical systems.

Features & Benefits

• Wide operating temperature range between -40°C and +50°C for use in harsh conditions
• DIN EN 50178 approval assures you of the product's safety and reliability
• IEC 62103 compliance indicates the unit has passed quality testing for use in power installations

RIF-3 Relay Module assembled 230AC/3x21

Instruction Sheet - RIF-3-RPT-LV-230AC/3X21

Line Drawing - 2903292
