2903330, Phoenix Contact RIF-1-RPT-LDP-24DC/2X21AU Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole, Реле

Phoenix Contact RIF1 Power Relay Module

A professional range of DIN rail mounting, power relays from Phoenix Contact that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.

Features and Benefits

• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Push-in connection
• AC and DC versions
• 1 and 2 contact options
• Yellow LED indicator
• Varistor or damping diode protective circuit
• DPDT and SPDT available

Phoenix Contact Non-Latching Relay, 24V DC Coil, 50mA Switching Current - RIF-1-RPT-LDP-24DC/2X21AU - 2903330

When you need to operate your equipment indirectly, turn to this non-latching relay from Phoenix Contact. It's an electrical switch that's capable of opening and closing a separate circuit, so you can control it remotely.
As the relay is an NC (normally closed) switch, it will return to this position when the current is turned off. It's designed to be mounted on a standard DIN rail, for easy installation and compatibility with common fixtures. You can connect it to other components using simple push-in connections, with no tooling required.
A rapid response time of 8ms makes this a fast-acting choice for your system, while an expected life of 30,000,000 mechanical cycles ensures it offers long and reliable service. Thanks to a yellow LED (light-emitting diode) display, it's easy to read the operating voltage.

• Coil power of 400mW
• Coil resistance of 1.44kΩ
• Coil voltage of 24V DC
• Double pole, double throw (DPDT) contact configuration
• Silver-alloy contact material
• Dimensions of 16 (length) x 93 (height) x 75mm (depth)
• Switching current of 50mA
• Plug-in terminal type
• Operating temperature range of -40°C to +70°C
• Conforms to the Restriction of Hazardous Substances (RoHS), so it contains no more than minimal amounts of any potentially harmful materials

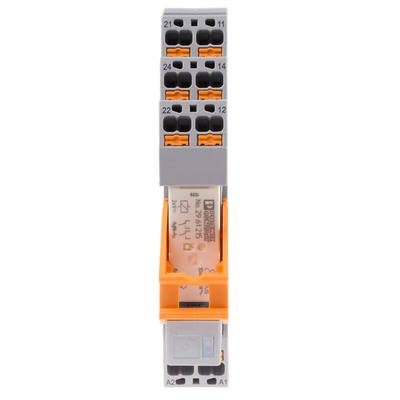

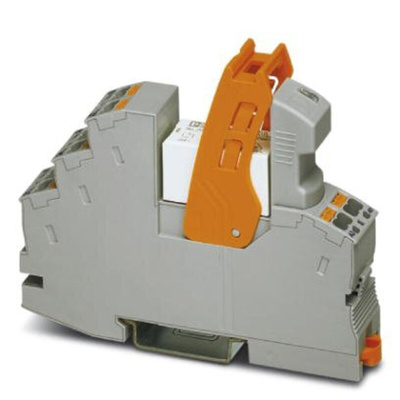

RIF-1 Relay Module assembled 24DC/2X21AU
