2903334, Phoenix Contact RIF-1-RPT-LDP-24DC/2X21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole, Реле

Phoenix Contact RIF1 Power Relay Module

A professional range of DIN rail mounting, power relays from Phoenix Contact that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.

Features and Benefits

• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Push-in connection
• AC and DC versions
• 1 and 2 contact options
• Yellow LED indicator
• Varistor or damping diode protective circuit
• DPDT and SPDT available

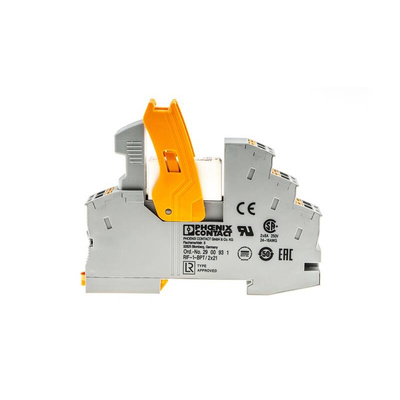

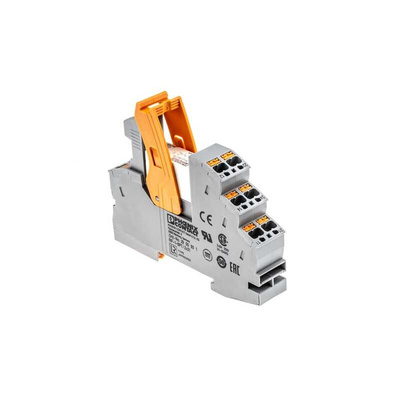

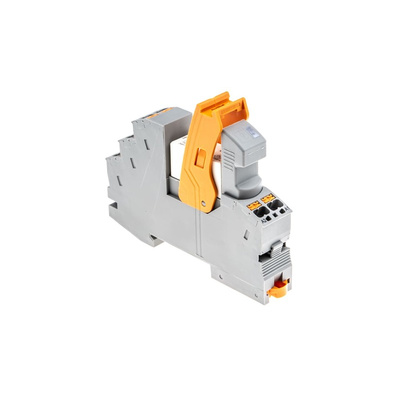

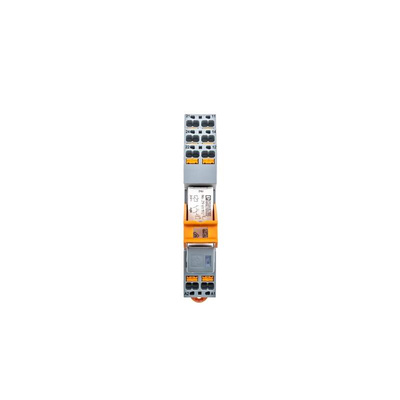

Phoenix Contact Non-Latching Relay Module, DPDT - RIF-1-RPT-LDP-24DC/2X21- 2903334

Make your automation needs simpler with this pre-assembled relay module from Phoenix Contact. It's used to achieve a reliable exchange of signals between process peripherals and central control systems in energy distribution and materials processing units.
The unit is made up of a relay base, a power contact relay, a retaining bracket and a plug-in display. It comes with a DPDT (double pole, double throw) configuration and is useful for coupling, power switching and signal duplication applications. The relay bases feature push-in contacts for quick and tool-free wiring.
Silver-alloy contact materials in this relay ensure good conductivity and reliable resistance to corrosion. As this unit offers a life of 30 million cycles, it's a long-lasting choice for your industrial setup.

Features and Benefits

• Coil power of 400 mW
• Coil resistance of 1.44 kΩ
• Coil voltage of 24 V DC
• Switching current of 2 A
• Maximum switching power of 2 kVA AC
• Maximum switching power of 192 W DC
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 250 V DC
• Operating temperature range of -40°C to +70°C
• DIN rail mounting type

Standards

DIN EN 50178
