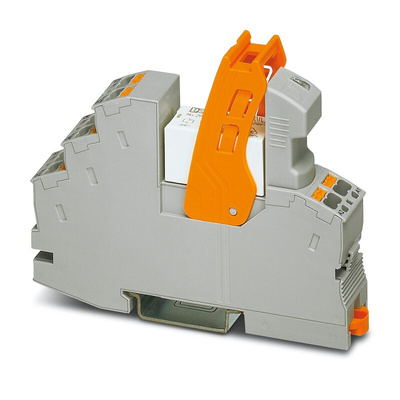

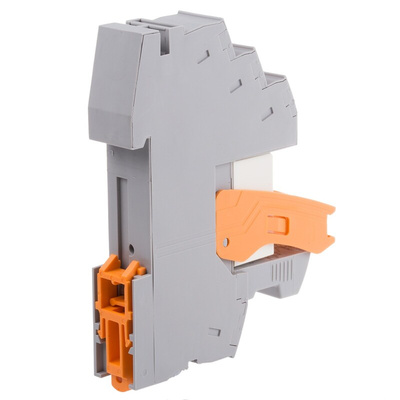

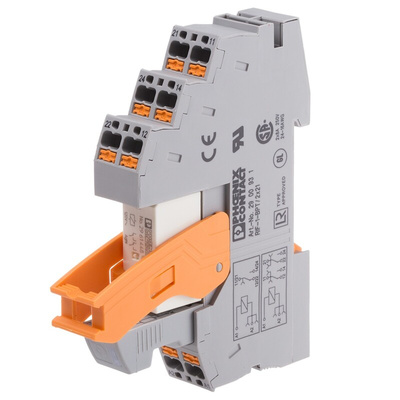

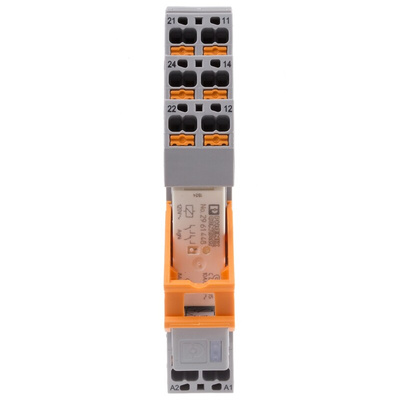

2903332, Phoenix Contact DIN Rail Power Relay, 120V ac Coil, 12A Switching Current, DPDT, Реле

Phoenix Contact Power Relay, 8,800Ω Coil Resistance, 12A Switching Current - RIF-1-RPT-LV-120AC/2X21 - 2903332

Need a reliable switching solution for your PCB? Pick this 2-pole power relay from Phoenix Contact to turn your applications on and off. The unit comes fully assembled and includes a base, suppressor and retaining bracket, so you don't have to rummage around for additional parts.
Thanks to the DPDT contact configuration, you can control two circuits with a single actuator. This means a simpler setup with a space-saving footprint. Wires are terminated in a jiffy, thanks to the push-in connections. Plus, for versatility, these terminals handle wire sizes from 26 to 16AWG. Simply clip the relay onto a DIN rail for convenient, tool-free installation.
With its 250V AC and DC switching capability, you can use this device with different power sources to support high-voltage operations. A mechanical service life of 10,000,000 cycles assures you of consistent reliability. Use it for your industrial processes, medical equipment and in research and development facilities.

Features & Benefits

• Wide operating temperature range between -40°C and +50°C for use in challenging conditions
• IEC 62103 compliance indicates the unit is suitable for use in power installations
• IP20-rated component is touch-proof and protected against objects over 12mm for improved electrical safety
• Varistor surge protection to prevent damage and injuries

RIF-1 Relay Module assembled 120AC/2X21

Instruction Sheet - RIF-1-RPT-LV-120AC/2X21

Line Drawing - 2903332
