2903342, Phoenix Contact RIF-1-RPT-LDP-24DC/1X21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 11A Load, Реле

Phoenix Contact RIF1 Power Relay Module

A professional range of DIN rail mounting, power relays from Phoenix Contact that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.

Features and Benefits

• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Push-in connection
• AC and DC versions
• 1 and 2 contact options
• Yellow LED indicator
• Varistor or damping diode protective circuit
• DPDT and SPDT available

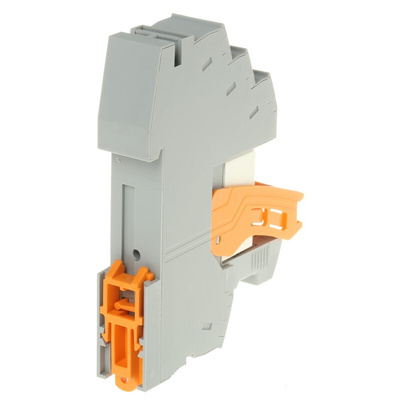

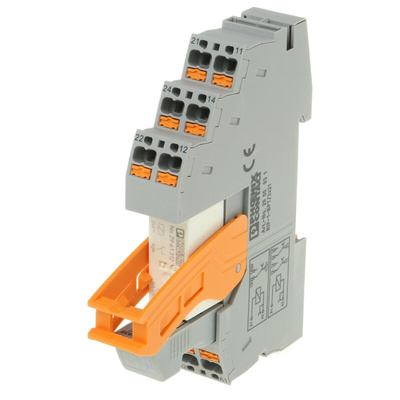

Phoenix Contact Non-Latching Relay Module, SPDT - RIF-1-RPT-LDP-24DC/1X21- 2903342

Choose this pre-assembled relay module from Phoenix Contact for reliable signal communications in your factory automation systems. It has an SPDT (single pole, double throw) configuration which is useful for switching between two circuits.
This unit comes with a relay base, power contact relay and a retaining bracket. A plug-in module lets you fit an input circuit or interference-suppression circuit to meet your system's needs. Thanks to its compact design, this relay fits into modular systems with ease.
The relay base in this module is protected to IP20 (ingress protection) rating, so it's touch-proof. The unit performs reliably in a wide operating temperature range of -40°C to +70°C, making it suitable for use in tough industrial settings. A life of 30 million cycles means you can be confident of long service.

• Coil power of 400 mW
• Coil voltage of 24 V DC
• Isolation coil to contact of 6 kV
• Switching current of 11 A
• Maximum switching power of 2.75 kVA
• Maximum switching power of 264 W
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 250 V DC
• DIN rail mounting type
