Phoenix Contact RIF-0 Power Relay Modules
The professional range of RIFLINE complete power relays consist of a relay base with ejector and multi-layer gold contact or power contact relay.
The innovative, general purpose ice-cube relays are an excellent choice if you want to isolate, amplify or multiply signals. The universal plug-in design allows fast, easy and error free handling.
Features and Benefits
• Easy wiring due to push in connection technology
• Easy handling and extension of range
• Plug in display/suppressor module
• 1 and 2 contact options
• 5ms typical response time
• Damping diode protective circuit
• SPNO and SPDT available
• Din rail mounting
• Silver alloy contact material
• -40°C to +60°C operating temperature
Typical Applications
The Phoenix Contact RIFLINE range can offer you a solution to practically every switching application.

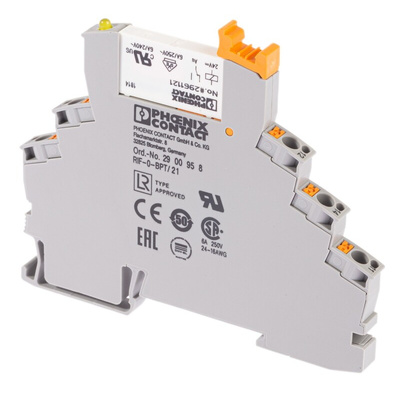

Phoenix Contact Non-Latching Relay Module, SPDT - RIF-0-RPT-24DC/21AU - 2903368
Make your automation needs simpler with this Phoenix Contact non-latching relay module. It comes pre-assembled with a relay base and a miniature power relay. The pluggable unit uses an SPDT (single pole, double throw) configuration, which is useful for varied switching and coupling operations.

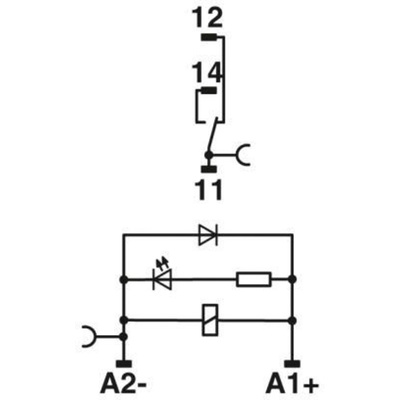

The relay base in this unit comes with an ejector and push-in connections, so it's quick and easy to install. An integrated freewheeling diode lets you choose between connecting an input circuit or an interference suppression circuit to meet your needs. Holders for test plugs make quality checks faster and simpler.
Hard, gold-plated contacts offer reliable resistance to rust and corrosion. A universal design ensures efficient and error-free handling, making this unit ideal for your modular systems.
• Coil power of 170 mW
• Coil resistance of 3.388 kΩ
• Coil voltage of 24 V DC
• Mechanical service life of 20,000,000 cycles
• Maximum switching power of 1.5 kVA
• Maximum switching power of 1.2 W
• Maximum switching voltage of 30 V AC
• Maximum switching voltage of 36 V DC
• Operating temperature range of -40°C to +60°C
• Dimensions of 78 (depth) x 93 (height) x 6.2mm (width)
• DIN rail mounting type
