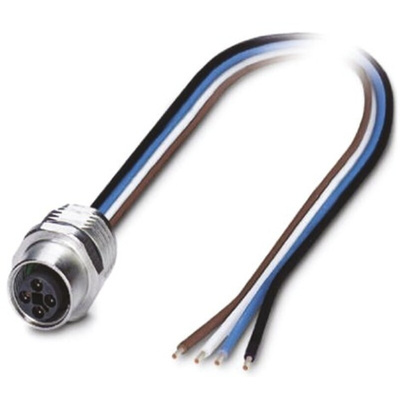

1424138, Phoenix Contact Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Phoenix Contact T-Coded M12 Flush Mount Power Connectors, Free End

Phoenix Contact 4 way T-coded M12 power plug and socket flush mount panel connector cable assemblies with 0.5 metres of PP litz wire cable (free end) and a CuZn alloy with nickel plate connector body, designed for use in many applications that call for a durable M12 power connector with a high degree of environmental protection, IP67 rated when mated.These M12 flush mount plug and socket connector cable assemblies have a current and voltage rating of 12A at 630Vac.

Rated at 12A, 630Vac
Category III surge protection
IP67 rated when mated
Temperature range -25 to +85 °C
Conductor cross section 4x1.5mm²
Wire colours black x 3, green/yellow

Phoenix Contact M12 T-Coded Power Connectors

A comprehensive range of Phoenix Contact M12 connector designed for use within demanding environments, with a variety of fittings for enhanced corrosion resistance and durability.

M12 Cable Assembly S-Coded 1424138
