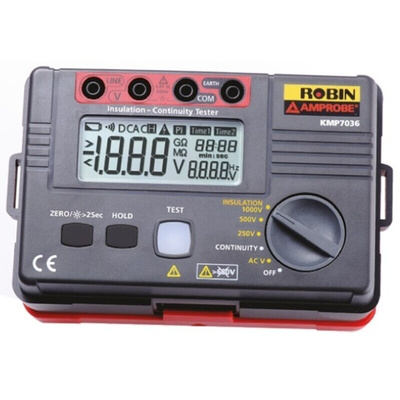

KMP7036 Insulation Tester

The KMP7036 Insulation-Continuity Tester is used for accurately measuring the insulation of electrical equipment, ensuring that electricity has a direct path to flow safely and there is no risk to those around the area. The Isolation Tester can test cables, wires, transformers, electrical motors and other similar devices to evaluate if insulation breakdown has become excessive; if so, steps can be taken to fix the problems long before they become a significant danger.

Tests insulation of wires, cables, transformers and electrical motors
Selectable test voltages 250V, 500V and 1000V
Test button hold to perform the Dielectric Absorption Ratio Test
Continuity test at 200mA short-circuit
Built in voltmeter and red light warning for live circuit indication
Large, backlit display
Automatic discharge of test object after completion of measurement
Data Hold
Test lead resistance zero facility
Low battery indication
Safety CAT III 600V

Supplied with

2 x test leads, 2 x test probes, 2 x alligator clips, 6 x AA batteries, user manual, carry case and strap

KMP7036 Insulation continuity tester
