KVM-VGAXT, NewLink 2 Port VGA over CATx Extender Pair 150m, 1280 x 800 Maximum Resolution

SVGA Extender over Cat5

The SVGA Extender Over Cat5 has a built in noise suppression circuit, which eliminates signal loss for superb SVGA quality. Because they are can be used with unshielded twisted pair (UTP) CAT5E cable, they provide a cost effective way to extend your Video and Audio signals (depending on model) by using CAT5E.

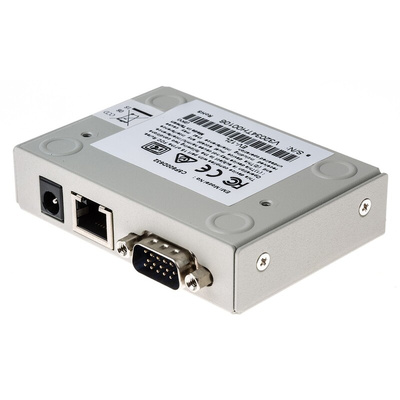

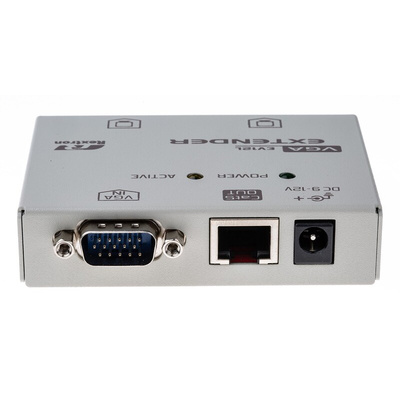

Simple to use, connect the local unit to your computer, connect a cat5 cable to local unit and remote unit then connect your remote monitor to remote unit. Ensure both power supplies are used and both of the units Power LED and Active LED's are lit. If the picture quality is bad, use the distance selector to adjust.

Supports SVGA (KVM-VGAXT)
Supports a maximum distance of 150 Mtrs (492ft)
SVGA resolution up to 1024x768 @ 150mtrs
Ultra Compact
Compatible with CAT5, CAT5E and CAT 6 UTP Cables
LED Power and Activity indicators
Gain control on Remote Unit

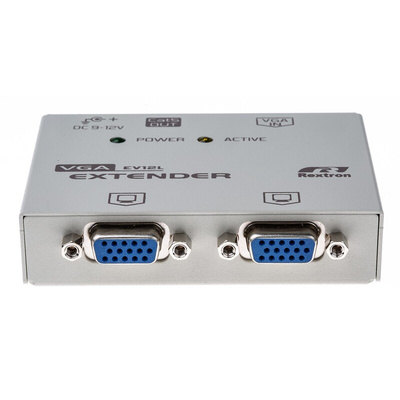

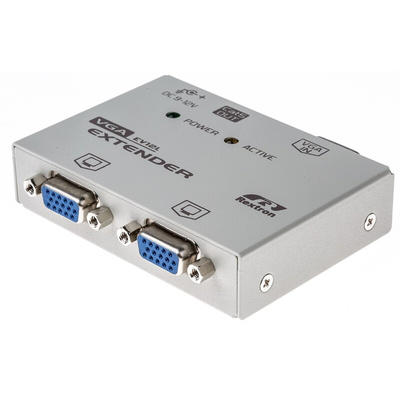

Local and Remote units supports two VGA outputs. (KVM-VGAXT)

Note

Resolutions are dependant on distance with a max resolution of 1280 x 800 @ 150 meters

Supplied with

Remote unit

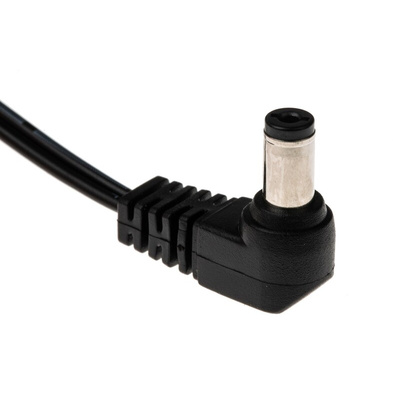

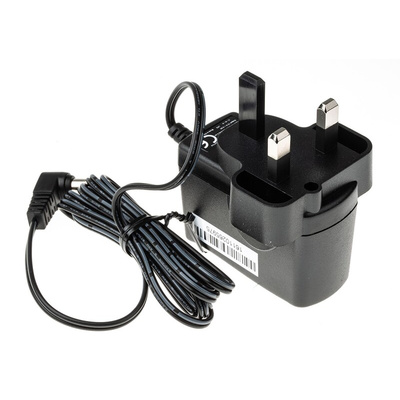

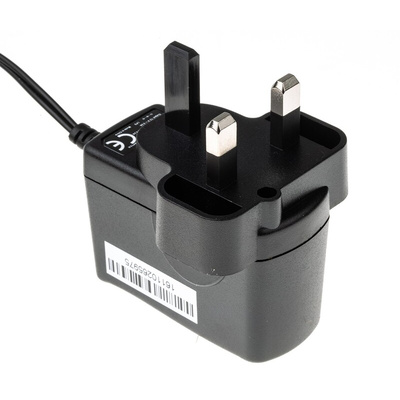

2 x Power supplies (UK Plug)
1 x User manual
