VGA-V080, NewLink VGA over CATx Extender Pair 80m, 2048 x 1536 Maximum Resolution

NewLink VGA Extender

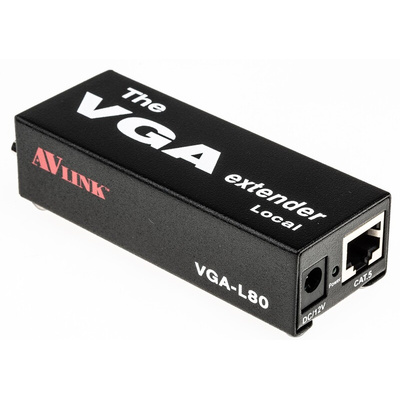

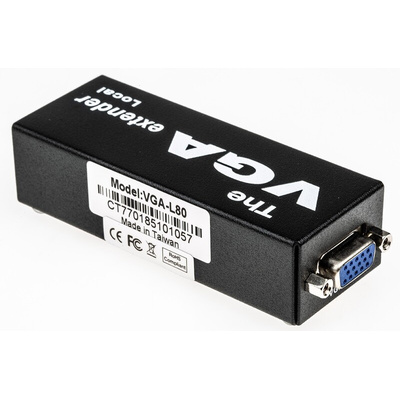

The NewLink VGA extender is a robust device used to establish a connection between PC and display that are up to 80m apart. The local unit receives the video signal from the PC and sends the signal to the remote unit(s) through a length of Cat5e cable. The remote unit connects to the display monitor. The power supply can be connected to either a local or remote unit.
Note:
The VGA output can be adjusted via EQ and GAIN controls on the underside of the remote unit.
Inclusions:

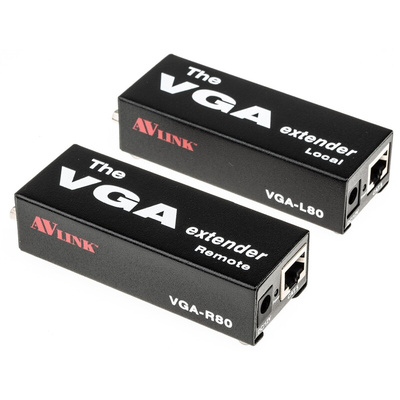

Local and remote unit
1 x DC 12V 600mA PSU

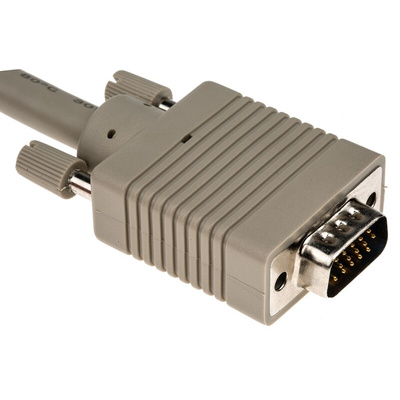

1 x VGA cable male to male
1 x user manual

Features and Benefits

Maximum resolution of 2048 x 1536 60Hz (dependant on length of extension)
Supports "power over cable" technique, only one unit (Local or Remote) needs to connect to PSU
Both "local" and "remote" can act as the PSE (power source equipment)
CATx transmission method
Equalization length is adjustable
VGA signal gain is adjustable
Video connection type is VGA
Metal housing

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
