Parallax Inc 85000

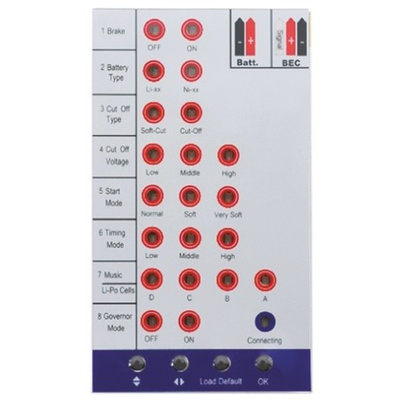

BESC programming card

This device plugs in between a R/C receiver and an electronic speed controller (ESC) on an ELEV-8 quadcopter or other radio controlled UAV. It allows you to program the ESC according to a series of LED indicators. There are buttons at the bottom to help you navigate through the menu and select the feature you want, change it, then press the save button. It gives you the assurance that the settings you have changed are correct and saved into the ESC.

Compatible with all Hobbywing, Thunderpower, Turnigy and OEMRC Sentillion Speed Controllers
Voltage requirements: 5 to 6Vdc
Weight: 26g
Dimensions: 92 x 52 x 6mm

The Propeller™ 1 microprocessor chip makes it easy to rapidly develop embedded applications. Its eight 32-bit processors (COGs) can operate simultaneously, either independently or cooperatively, sharing common resources through a central hub. The developer has full control over how and when each cog is employed; there is no compiler-driven or operating system-driven splitting of tasks among multiple cogs. A shared system clock keeps each cog on the same time reference, allowing for true deterministic timing and synchronization. Two programming languages are available: the easy-to-learn high-level Spin, and Propeller Assembly which can execute at up to 160 MIPS (20 MIPS per COG).

BESC Programming Card Data Sheet
