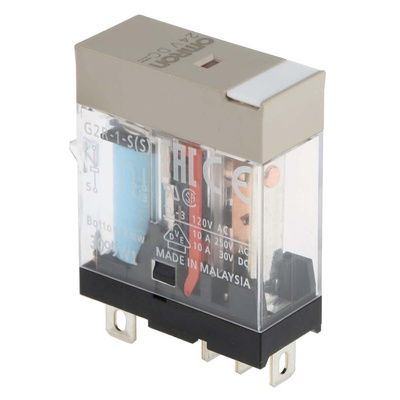

G2R-1-S DC24(S), Omron Plug In Power Relay, 24V dc Coil, 6A Switching Current, SPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

G2R-1-S 24DC(S) Non-Latching Relay.

The part number G2R-1-S 24DC(S) allow 60% less wiring work when used with a push-in plus socket. This model is a general purpose non-latching relay.

G2R-1-S 24DC(S) Plug-in Non-Latching Relay Features.

•\tSPDT Contacts.
•\t1 Poles.
•\tRated coil voltage 24 V dc.
•\tRated current 21.6mA.
•\tCoil resistance 1113 Ω.
•\tArmature OFF coil inductance 3.6.
•\tArmature ON coil inductance 8.25.
•\tRated carry current and max switching current 10 A.
•\tSwitching voltage max 440 V ac, 125 V dc.
•\tFailure rate 100 mA at 5 V dc.
•\tVibration resistance – destruction and malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude, 1.5 mm double amplitude.
•\tShock resistance – destruction 1000 m/s².
•\tShock resistance – malfunction 200 m/s² (when energised).
•\tWeight 20 g.

Relay Connecting Sockets – Track / Surface Mounted.

•\tPush-In Plus Terminal Blocks model P2RF-05-PU – Stock number 1113066.
•\tScrew Terminals model P2RF-05-E– Stock number 353944.

Relay Back Mounted Sockets.

•\tPCB Terminals model P2R-05P – Stock number 353950.
•\tPCB Terminals model P2R-057P – Stock number 2604446.

Relay Mounting Track.

•\tDIN Rail Model PFP-50N (50 cm x 7.3 mm) – Stock number 8278400.
•\tDIN Rail Model PFP-100N (1 m x 7.3 mm) – Stock number 8278403.
•\tDIN Rail Model PFP-100N2 (1 m x 16 mm) – stock number 8278406.
•\tModel PFP-M – Stock number 8278419. (Use this end Plate when DIN rail mounting).

Spacer Plate.

•\tModel PFP-S – Stock number 8278412.

G2R Datasheet
