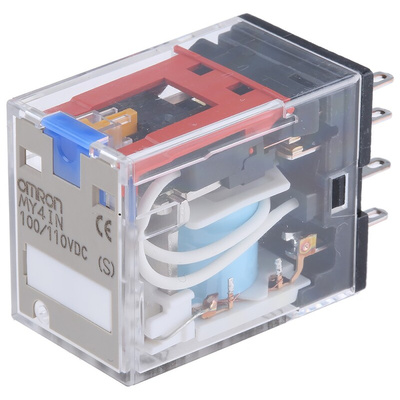

MY4IN DC100/110(S), Omron Plug In Power Relay, 100 → 110V ac Coil, 5A Switching Current, 4PDT, Реле

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

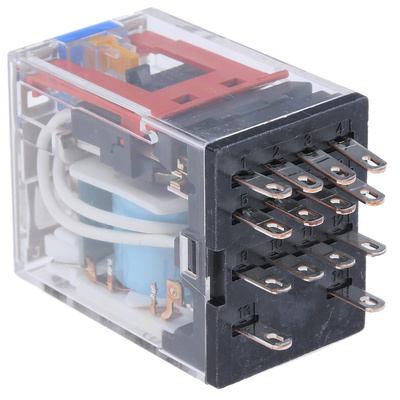

OMRON Power Relay, 14-Pin Connector, With Test Button - MY4 Series - MY4IN DC100/110(S)

Get your system up and running with this power relay from OMRON. The device's gold-plated silver alloy contacts shake off corrosion and deliver the high level of conductivity needed for reliable switching. Thanks to its 20ms response time, the unit quickly switches to start everything from HVAC systems to uninterruptible power supplies in a flash. Installation is as easy as plugging it into a rail-mounted socket (such as 111-3063). A handy test button simulates power signals, so you can check that your connections are in proper working order.

Features & Benefits

• Handles current up to 5A to easily switch low loads
• 4-pole design for simultaneous control of multiple circuits
• LED indicator for hassle-free status checks
• Electrical service life of 200,000 operations means you get long-lasting system control
• Compact dimensions of 28 (H) x 36 (L) x 21.5mm (D) fit easily into any standard enclosures

Applications

• Material handling
• Paper production
• Marine and offshore industries

How many times can this relay switch in an hour?

It completes up to 1,800 switching cycles per hour, so it's a safe bet for demanding control applications.

MY(S) Datasheet
