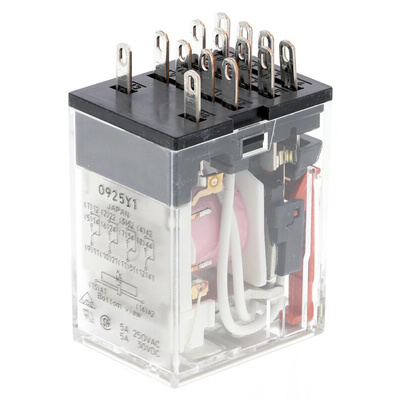

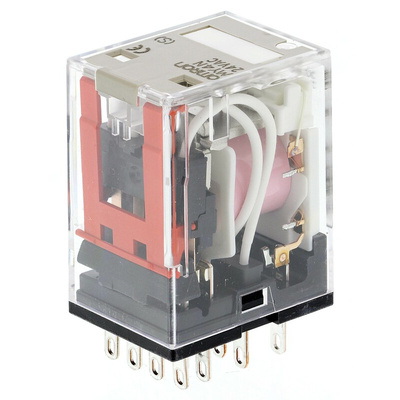

MY4N AC24(S), Omron Plug In Power Relay, 24V ac Coil, 5A Switching Current, 4PDT, Реле

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

OMRON Power Relay, 14-Pin Connector, Silver Alloy Contact Material - MY4 Series - MY4N AC24(S)

Looking for glitch-free ON/OFF switching? Put this OMRON power relay to work. Thanks to its 2.6mm-wide pins made of silver alloy, the unit conducts energy without a hitch, so you get efficient transmission. By responding to signals in just 20ms, the device switches its circuits in a flash. Carrying out spot checks on status is no problem, thanks to an LED indicator. Don't worry about intense loads, as this relay switches current up to 5A to easily manage positioning equipment and lighting systems.

Features & Benefits

• Slots into a socket (such as 111-3065) for quick and tool-free mounting
• Achieves up to 1800 switching operations per hour to keep up with fast-moving tasks
• Insulating plastic body cuts your chance of exposure to hazardous electricity
• Supports soldering to PCBs for versatile installation
• 4-pole configuration for switching multiple circuits from one unit

Applications

• Food production
• Oil and gas processing
• Retail units

Can I use this unit in dirty or damp environments?

Yes, this device's gold-coated contacts resist corrosion, keeping your setup's power connections running smoothly in demanding settings.

MY(S) Datasheet
