P2RF-08-S, Omron 8 Pin 250V ac DIN Rail Relay Socket, for use with G2R-2-S Series, Контактная колодка

P2RF-S Series

Omron P2RF-S Series screwless clamp terminal sockets with finger protection.

Screwless clamping greatly contributes to reducing wiring time
Better contact reliability
Double wiring possible on all the terminals
Safe terminal arrangement: coil terminals separated from contact terminals
Unique ejector enables easy relay replacement
Nameplate available

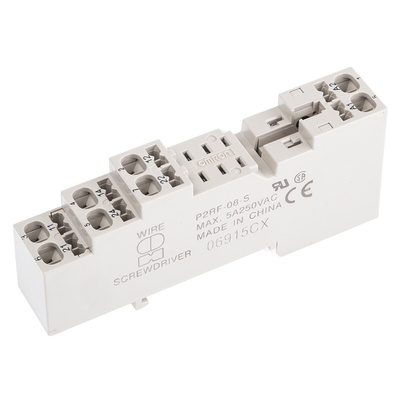

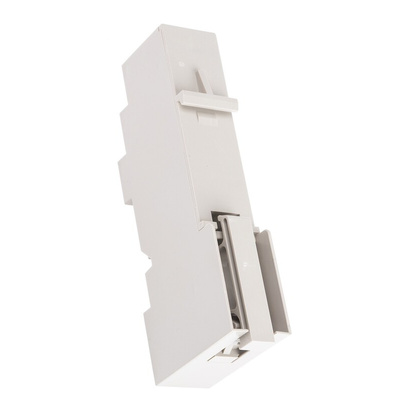

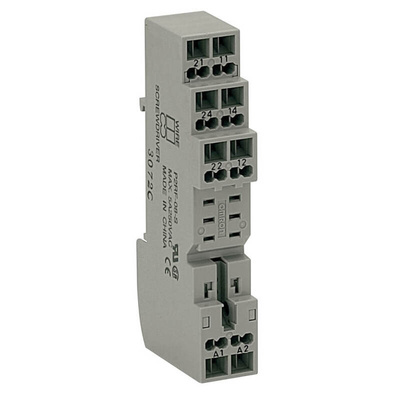

OMRON Relay Socket, 92 (H) x 18 (W) x 32.6mm (D), 250V AC Insulation Voltage - P2RF Series - P2RF-08-S

Need to mount a plug-in relay in a snap? Reach for this relay socket from OMRON. It's specially designed to fit switchgear from OMRON's G2R range of slim and space-saving devices used to switch industrial components such as actuators. As the socket acts as an electrical interference between a circuit and your switchgear, it's quick and easy to mount or remove a relay. Thanks to its screwless clamp terminals, you benefit from reduced wiring time, as springs hold conductors firmly in place. These terminals are also vibration-resistant, giving you peace of mind in harsh settings.

Features & Benefits

• IP20-rated housing is protected against finger touch and tools and wires larger than 12mm
• Offers reliable performance in a wide operating temperature range between -55°C and +70°C
• Helps you maximise packing space, thanks to its compact dimensions of 92 (H) x 18 (W) x 32.6mm (D)

Applications

• Industrial process control
• Oil and gas industries
• Automotive manufacturing
• Aerospace technology

How do I remove a relay from this socket?

It comes with a handy release lever, making it a cinch to remove a relay without the need for tools.
