PF113A-D, Omron 11 Pin 300V ac DIN Rail Relay Socket, for use with MKS Series, Контактная колодка

MK-S Series

Omron MK-S Series general-purpose relays with the same mounting and internal wiring as the previous Super MK relays.

Built-in mechanical indicator enables checking contact operation
For models with latching lever, two modes can be used to check circuits
On models with latching lever, nameplate is provided
RoHS compliant
UL and IEC (TÜV) certification

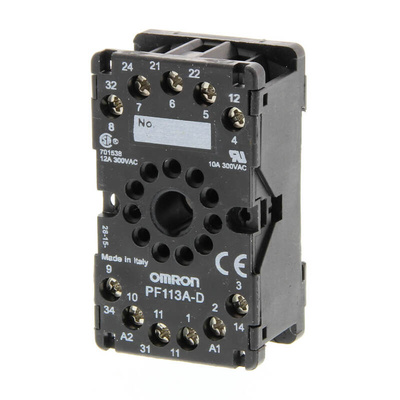

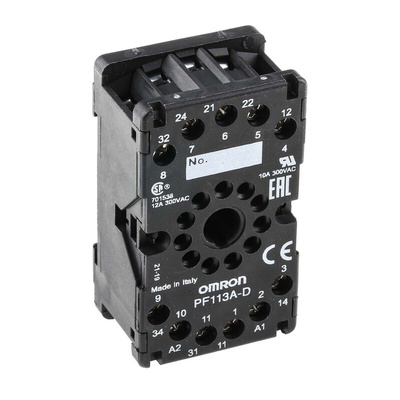

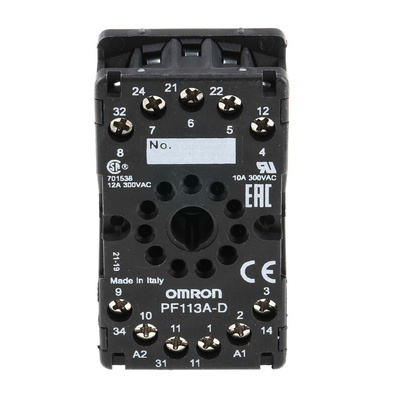

OMRON Relay Socket, Screw Terminals, 11-Pin Construction - PF113A-D

Easily and securely mount your switch, thanks to this relay socket from OMRON. It's a handy multitasker that's compatible with relays in the MK-S series (such as 536-940). Screw terminals are on hand to latch firmly onto your equipment, giving you a vibration-proof connection without the need to reach for complex tools. As the unit withstands operating temperatures ranging between -25°C and +85°C, it's the right fit for demanding conditions. With a current rating of 10A, it's the one to reach for when you're setting up light-duty to medium-duty applications.

Features & Benefits

• Dimensions of 65 (H) x 38 (W) x 27mm (D) make it a space-efficient choice for compact setups

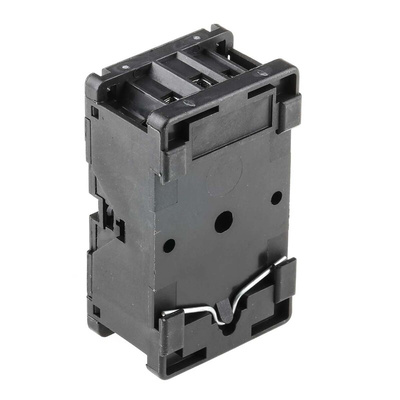

• DIN rail mounting is simple and quick, saving time and hassle
• Light weight of 65g means it's easy to handle during installation and doesn't put stress on your equipment

Applications

• Switchgear systems
• Process and packaging equipment
• Machine building

Is this relay socket finger-safe?

Yes, its IP20 rating shows that it's protected from objects larger than 12.5mm in size, including your fingers. This limits your exposure to live parts during operation and boosts workplace safety.

MK-S Relays Data Sheet
