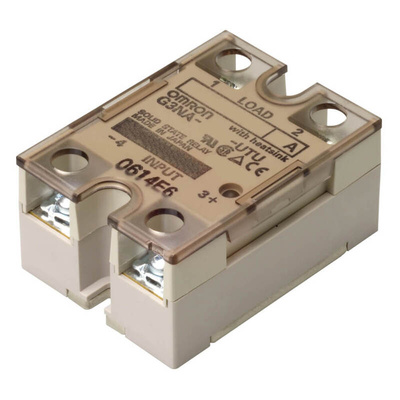

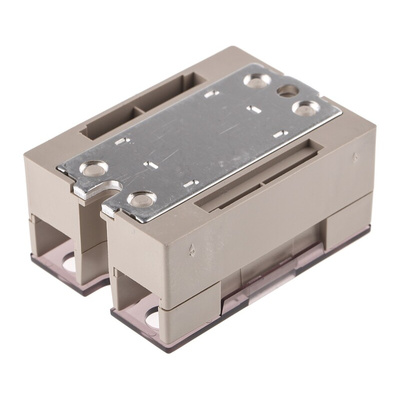

G3NA-220B-UTU DC5-24, Omron G3NA Series Solid State Relay, 20 A Load, DIN Rail Mount, 264 V ac Load, 24 V dc Control

OMRON Solid State Relay, 5 to 24V AC Input Voltage, SP Contact Configuration - G3NA Series - G3NA-220B-UTU DC5-24

Quickly manage electrical loads in your industrial system with this solid state relay from OMRON. It's ideal for switching current on or off in situations such as motor control or energy isolation. A turn-on/turn-off time of just 1ms boosts your productivity and minimises downtime. To keep performance smooth, the unit's zero-cross function suppresses noise by turning on when the AC load is around zero volts. A protective cover safeguards the workings and keeps you safe from contact with live parts. This SSR doesn't break a sweat in warm and damp conditions, as it functions in a relative humidity range between 45 and 85%.

Features & Benefits

• DIN rail mounting for swift and straightforward set-up
• LED indicates operating status for at-a-glance monitoring
• Compact dimensions of 58 (L) x 43 (D) x 30mm (H) make it space-efficient
• 20A switching current to support demanding applications
• Voltage-dependent resistor protects against electrical surges

Applications

• Robotics systems
• Factory floors
• Medical equipment

Can I use this relay in harsh settings?

Yes. This solid state relay performs reliably in a temperature range between -30°C and +80°C, so it's ideal for use in challenging environments.
