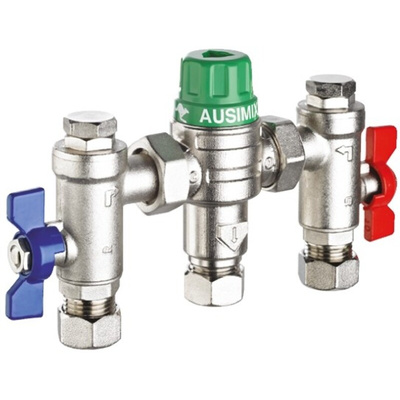

HEAT110980, Reliance Water Controls Reliance Brass Ausimix Thermostatic Mixing Valve, 15mm

Ausimix TMV2 & TMV3 Thermostatic Mixing Valves

Dual approval TMV2 and TMV3 for complete flexibility
Rapid failsafe on eiter hot or cold supply failure
Provides stable mixed water temperature
Complies with Part G and NHS MES D08 specification
Flat faced union connections for ease of maintenance
Unique temperature adjustment tool incorporated into the cap
Body and fittings: DZR Brass, Nickel plated
Seals: Viton
Spring: Stainless steel
Strainers: Stainless steel
Washers: Tesnit

Note

Reliance Water Control’s Ausimix is a thermostatic mixing valve approved for both the TMV2 and TMV3 schemes making this valve suitable for healthcare, domestic and commercial/general public use

Standards

BSEN 1111, BS 7942, NHS MES D08

Approvals

WRAS, TMV2 and TMV3

Basin, Bath & Shower Valves

A range of thermostatically controlled mixer valves all capable of operating with a hot/cold or cold/hot pressure ratio imbalance of up to 10:1,All units incorporate check valves to prevent cross-flow between supplies, and strainers to reduce damage due to contamination.,Connections are via the compression fixings using either 15 or 22mm pipe.

Ausimix TMV2/3 Thermostatic Mixing Valve Data Sheet
