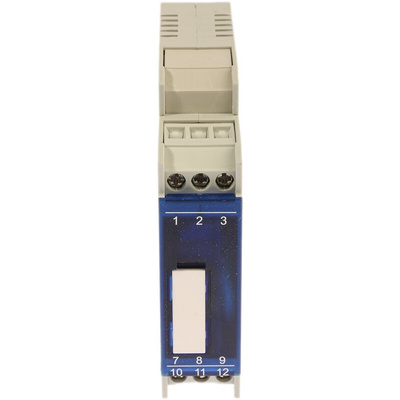

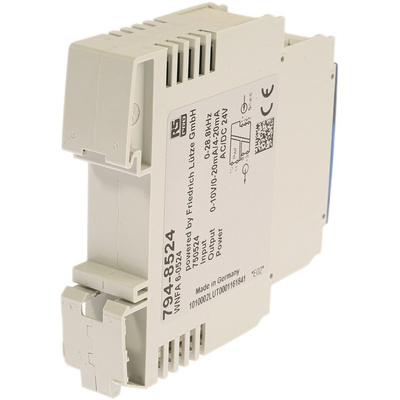

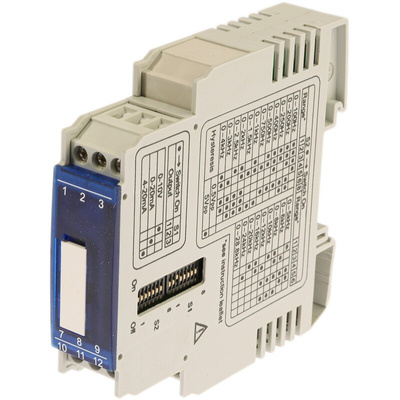

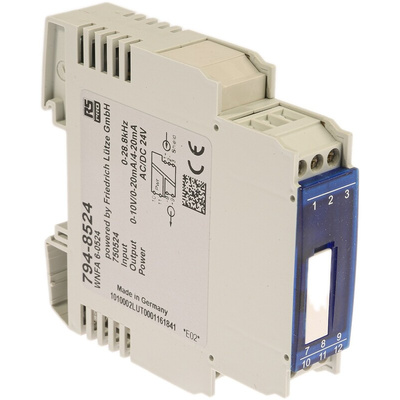

RS PRO Signal Conditioner, Frequency Input, Current, Voltage Output, 16.8 → 30 V dc, 19.2 → 28.8V ac

RS PRO Analogue Output, Signal Conditioner

This analogue-output signal conditioner lets you convert frequency signals ranging from 0 to 8 kHz into one of three commonly used analogue signals – 0 V to 10V, 0 mA to 20mA or 4 mA to 20mA.

This converter can accept inputs from rotational speed sensors, rotary pulse encoders and proximity switches. Two-way isolation ensures high resolution, stability and accuracy by eliminating noise, crosstalk or unwanted ground loop currents. Part of the trusted RS PRO range, the signal conditioner is stringently tested for quality. It can handle operating temperatures of -25°C to +60°C and is designed to be easy to use in the field as its compact package easily mounts onto a DIN rail.

Commonly found in industrial control and monitoring applications, these converters are used for process monitoring, engine performance rating and data acquisition.

Features and Benefits

• Micro-compact frequency-to-analogue converter signal conditioner
• Choose from three output ranges of 0 to 10 V, 0 to 20 mA, 4 to 20 mA

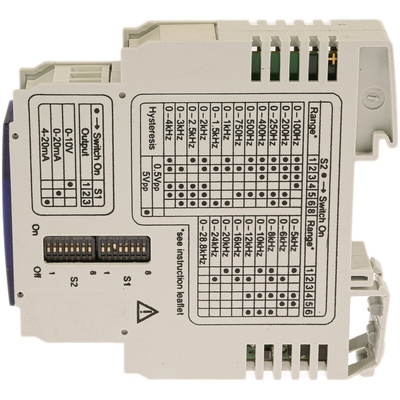

• 20 input ranges of 0 to 1 kHz, 0 to 10 kHz, 0 to 100 Hz, 0 to 12 kHz, 0 to 16 kHz, 0 to 2 kHz, 0 to 2.5 kHz, 0 to 20 kHz, 0 to 200 Hz, 0 to 24 kHz, 0 to 250 Hz, 0 to 28.8 kHz, 0 to 3 kHz, 0 to 4 kHz, 0 to 400 Hz, 0 to 5 kHz, 0 to 500 Hz, 0 to 6 kHz, 0 to 750 Hz, 0 to 8 kHz
• Minimum operating temperature of -25°C
• Maximum operating temperature of +60°C
• DIN rail mountable
• Screw-type termination for easy use
• Complies with cULus standards for use in hazardous locations
