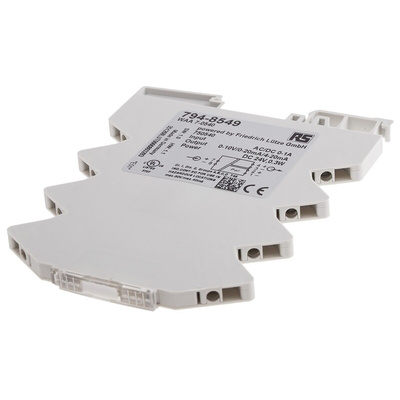

RS PRO Signal Conditioner, Current Input, Current, Voltage Output, 16.8 → 30V Supply

RS PRO Signal Conditioner with Analogue Inputs

This RS PRO signal conditioner converts analogue input signals in amperes (A) to outputs in volts (V) or milliamperes (mA). Its micro-compact size allows you to fit it into cramped electrical set-ups and the DIN-rail mounting means it's compatible with industry-standard fittings.
The conditioner's three-way isolation ensures the signal types have different ports, minimising interference between them. The LED indicator emits a yellow light to indicate if the conditioner is on, making it easy to check the unit's operational status.
This product features screw termination for quick and fuss-free installation while ensuring a secure connection. The device's Ingress Protection (IP) rating of IP20 means it's touch-proof and sealed against objects over 12 mm, protecting it from accidental damage or tampering.

Features and Benefits

• Input range of 0 to 1 A, ±1 A
• Analogue input type
• Signal conditioner module type
• DIN rail mounting type
• Operating temperature range of -25°C to +60°C
• Output ranges of 0 to 10 V, 0 to 20 mA, 4 to 20 mA
• Analogue output type
• 4104 series
• Analogue to analogue signal conditioner type
• Two-Way Isolation
• Meets Underwriters Laboratories (cULus) Class I, Division 2, Groups A, B, C, D and T4 standards
• Supply voltage of 16.8 to 30 V
• Screw termination
