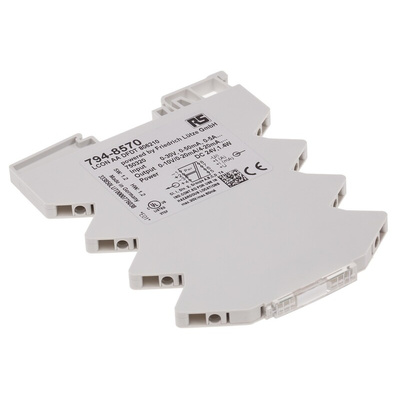

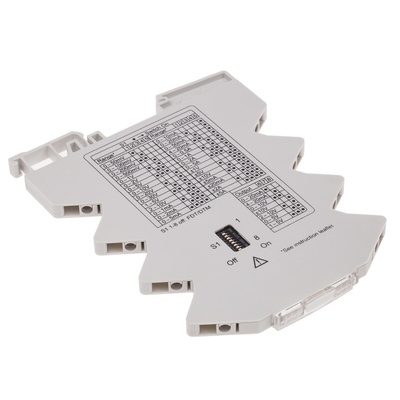

RS PRO Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 16.8 → 30V Supply

7948570
Производитель: RS PRO
Цена за шт.
96544.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Analogue Output, Signal Conditioner

Use this signal conditioner from our trusted RS PRO range to convert DC current to voltage and voltage to current safely. It has two-way isolation, which makes it highly effective at eliminating ground loop currents and electrical noise.

In addition to being compatible with a range of inputs, the converter supports four output modes – 0 to 10 V, 0 to 20 mA, -10 to +10 V, 4 to 20 mA. Its DIN rail-mounting and screw-type termination make it easy to install. Plus, the conditioner has an operating temperature range of -40°C to +70°C.

This signal conditioner conforms to various international standards for use in hazardous locations (Class I, cULus, Div. 2, Groups A, Groups B, Groups C, Groups D, Groups T4). An IP20 rating reduces any danger from accidental finger contact. The conditioner is commonly used in industrial and automation applications.

Features and Benefits

• Analogue-to-analogue converter signal conditioner
• 3-way isolation
• Four output ranges of 0 to 10 V, 0 to 20 mA, -10 to +10 V, 4 to 20 mA
• Input ranges of ±30 V, ±5 A, ±50 mA
• Minimum operating temperature of -40°C
• Maximum operating temperature of +70°C
• Rated IP20 for basic protection against accidental finger contact
• Class I, cULus, Div. 2, Groups A, Groups B, Groups C, Groups D, Groups T4 compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfInstallation Instruction Manual
pdfRS PRO Datasheet
Входной диапазон:
±30 V, ±5 A, ±50mA
Выходной диапазон:
0 → 10 V, 0 → 20 mA, -10 → +10 V, 4 → 20mA
Диапазон рабочих температур:
-40 → +70°C
Напряжение питания:
16.8 → 30V
Окончание:
Винт
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Серия:
Crouse-Hinds
Тип входного сигнала:
Ток, Напряжение
Тип выходного сигнала:
Ток, Напряжение
Тип модуля:
Analogue Signal Converter
Тип монтажа:
Крепление на DIN рейку
