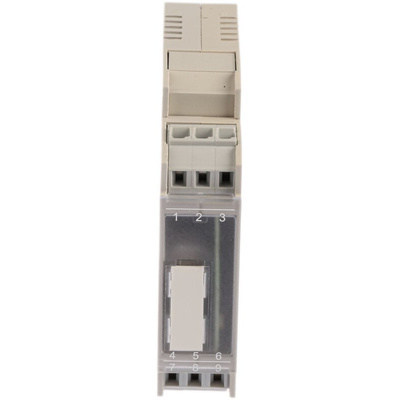

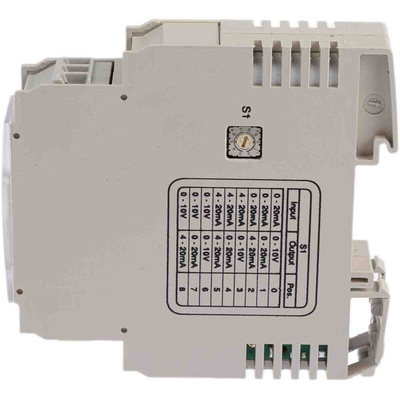

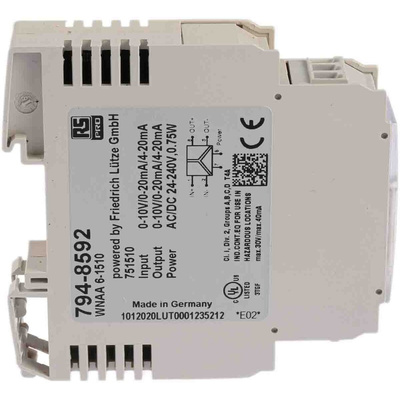

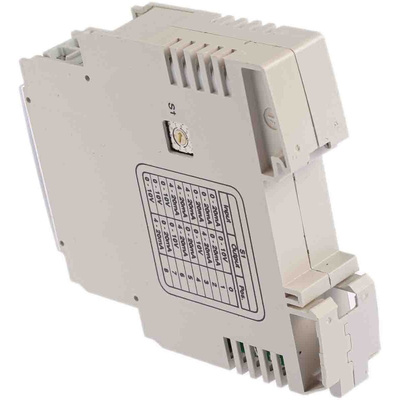

RS PRO Signal Conditioner

RS PRO Analogue Output, Signal Conditioner

This analogue-to-analogue signal conditioner from the RS PRO range is commonly used in industrial and automation applications. It's an efficient means of converting DC current to voltage and voltage to current. It has three input and three output ranges of 0 to 10 V, 0 to 20 mA and 4 to 20 mA.

The conditioner's two-way isolation means any electrical noise or ground loop currents are eliminated. What's more, the sturdy construction helps it withstand an operating temperature range of -25°C to +60°C

The converter is simple to install thanks to its DIN (Deutsche Institut für Normung, the German Institute for Standardization) rail-mounting and spring- or screw-type termination. It also has an IP20 rating so it offers protection if it's accidentally touched. This converter conforms to various international standards for use in hazardous locations (Class I, cULus, Div. 2, Groups A, Groups B, Groups C, Groups D, Groups T4).

Features and Benefits

• Micro-compact analogue-to-analogue converter signal conditioner
• Input range of 0 → 10 V, 0 → 20 mA, 4 → 20 mA
• Output range of 0 → 10 V, 0 → 20 mA, 4 → 20 mA
• Supply voltage of 16.8 → 264 V dc, 19.2 → 264 V ac
• Minimum operating temperature of -25°C
• Maximum operating temperature of +60°C
• Screw/Spring termination
• Rated IP20 for basic protection against accidental finger contact
• Complies with standards Class I, cULus, Div. 2, Groups A, Groups B, Groups C, Groups D, Groups T4 for usage in hazardous locations
