RS PRO Incremental Incremental Encoder, 1024 ppr, HTL Inverted Signal, Solid Type, 10mm Shaft, Энкодер

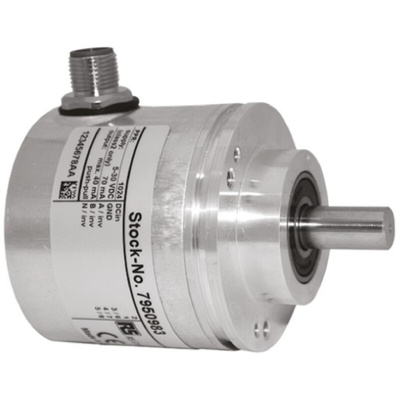

RS PRO Incremental Encoder 1024 PPR, Solid Shaft

Need to record rotations per minute (RPM), speed or distance in a high-speed rotating device? Use this RS PRO incremental encoder. The body is made of strong die-cast aluminium material, so you can use it for demanding industrial applications.


The cover has an Ingress Protection (IP) rating of IP67. This means it can withstand submersion in up to one metre of water for 30 minutes and is protected against dust. It can withstand high radial and axial loads for maximum durability. Its high PPR (pulses per revolution) of 1024 means it provides highly accurate readings.


For resistance to rust and corrosion, the unit is powder-coated. It's also a low-maintenance choice as its high electrical immunity means it's not susceptible to noise.

Features and Benefits

• Current rating of 70 mA (milliamperes)


• Incremental encoder technology


• Ingress Protection (IP) rating of IP67


• Operating temperature range of -20ºC to +80ºC


• Maximum revolutions of 8000 rpm (revolutions per minute)


• Clamping flange mounting type


• HTL (High Transistor Logic) inverted output signal type


• Overall depth of 90 mm


• Overall width of 58 mm


• Shaft diameter of 10 mm


• Resolution of 2500 ppr


• Pulses per revolution of 1024 PPR


• Solid shaft type


• Supply voltage of 5 to 30 V DC


• Switching frequency of 200 kHz
