RS PRO Incremental Incremental Encoder, 1024 ppr, HTL Inverted Signal, Hollow Type, 12mm Shaft, Энкодер

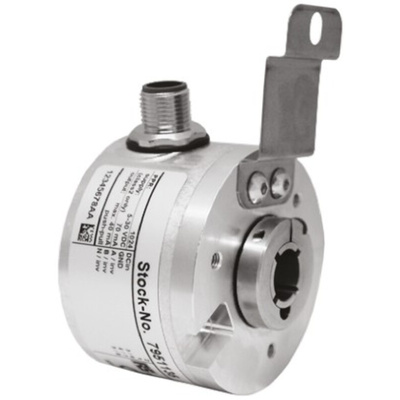

RS PRO Incremental Encoder 1024 PPR, Hollow Shaft

Use this RS PRO incremental encoder if you need to record the rotations per minute (RPM), speed or position of shafts in industrial machinery. It offers long-lasting performance as its body is made of die-cast aluminium. This means you can use it in demanding industrial environments, such as construction sites and manufacturing plants.


The encoder features high noise immunity to ensure reliable communication and accurate readings. It's suitable for installation in tight spaces as its through-bore design means it can be mounted on any part of the shaft. You can also install this part indoors or outdoors as it has an Ingress Protection (IP) rating of IP65, meaning it's dust-tight and will resist low-pressure waterjets. Use this encoder on any shaft with a speed of up to 6000 rpm (revolutions per minute) at temperatures of up to +80°C.

Features and Benefits

• Current rating of 70 mA


• Incremental encoder technology


• Ingress Protection (IP) rating of IP65


• Operating temperature range of -20ºC to +80ºC


• Maximum revolutions of 6000 rpm


• Hollow shaft flange mounting type


• HTL (High Transistor Logic) inverted output signal type


• Overall depth of 44.5 mm


• Overall diameter of 58 mm


• Resolution of up to 2500 PPR


• Pulses per revolution of 1024 PPR


• Shaft diameter of 12 mm


• Hollow shaft type


• Supply voltage of 5 to 30 V DC


• Switching frequency of 200 kHz
