RS PRO Absolute Absolute Encoder, 262144 ppr, Solid Type, 10mm Shaft, Энкодер

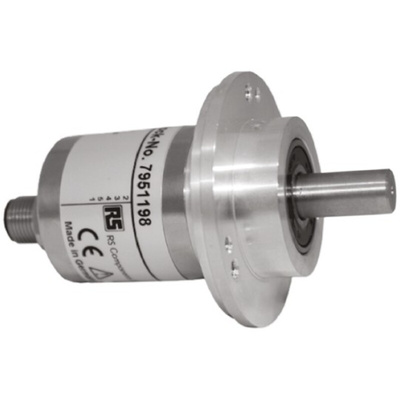

RS PRO Absolute Encoder 262,144 PPR, Solid Shaft

For sensing and measuring precise shaft positions, choose this absolute encoder from RS PRO. The unit is typically used in industrial robots, computer numerical control (CNC) machines and assembly units to determine the orientation of moving parts.
This encoder can withstand high axial and radial loads, making it the ideal choice for heavy-duty applications. It operates based on CANOpen technology so it doesn't require any batteries or gears. This feature ensures a virtually maintenance-free and environmentally friendly operation.
A two-colour LED indicator on this encoder makes it easy to check the operating status as well as any error messages. The unit can be mounted onto bearings with a maximum operating speed of 8000 rotations per minute (RPM), making it a versatile choice for industrial settings. It's been tested for quality and reliability.

Features and Benefits

• Current rating of 50 mA (milliamperes)
• Absolute encoder technology
• Ingress Protection (IP) rating of IP67
• Operating temperature range of -40°C to +80°C
• Maximum revolutions of 8000 rpm
• Clamping flange mounting type
• Overall depth of 91 mm
• Overall width of 58 diameter mm
• 262,144 pulses per revolution
• 16,384 steps per revolution
• Resolution of 18 bit
• Shaft diameter of 10 mm
• Solid shaft type
• Supply voltage of 10 to 32 V DC
• Switching frequency of 200 kHz
