XB5AS9442, Schneider Electric Harmony XB5 Series Key Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

The Harmony XB5 range of modular emergency stop push buttons offers you the reassurance of quality, efficiency and simplicity all in one. Designed with robust, durable material you can use this E-Stop button in a variety of different scenarios and industrial applications.

Features and Benefits

• Strong resistance to chemicals (cleaning agents, alcohol, oils & detergents) offering you the flexibility of area of use for your E-stops
• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel
• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation
• Simple, easy and quick panel mounting installation, saving you time and effort
• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more
• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances
Protection ratings -
• Conformity with IEC, UL, CSA & CCC EAC standards as well as JIS, CE marking (Marine approvals)
• IP 66 rated (Dust-tight, with no ingress of dust + water protection i.e. powerful jets of water)
• IP 67 rated (Push button is protected against short term immersion)
• IP 69 & 69K (E-stop is protected against close-range high pressure, specifically high-temperature spray downs up to 7,000,000 Pa at 55 °C, distance 0.1 m)
• Shock protection as standard, levelling up to IK03 rating
• NEMA 4X & NEMA 13 remarkably resistant to corrosion and severe environments, dust and water

Applications

• Machine & control panels, material handling
• Food/Beverage industries (ideal for use in areas with wash down procedures)
• Commercial applications such as airports, restaurants, office buildings

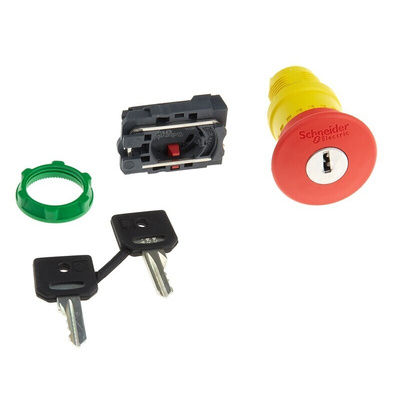

XB5AS9442 Harmony XB5 Schneider Electric Emergency Stop Push Button.

• Emergency stop, emergency switching off push button.


• Harmony XB5.


• Bezel –Plastic, dark grey.

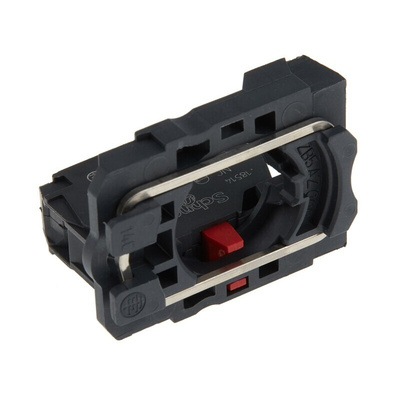

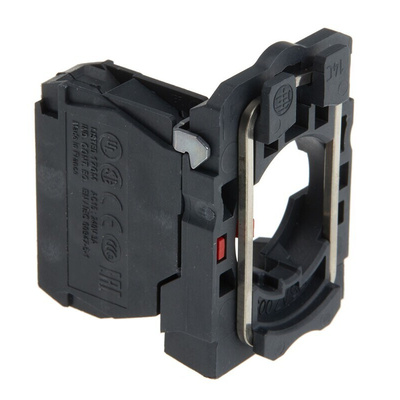

• Plastic fixing collar.


• Mounting diameter 22 mm.

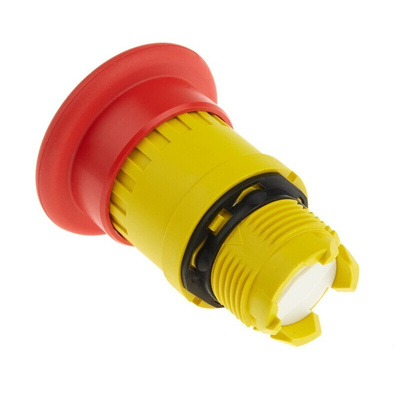

• Round shape, standard head type, red mushroom 40 mm diameter (unmarked).

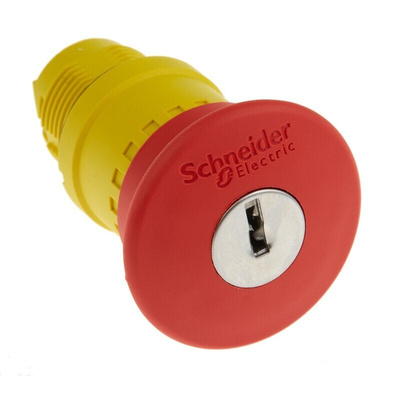

• Release reset, Key release.


• Operator – Trigger action and mechanical latching.

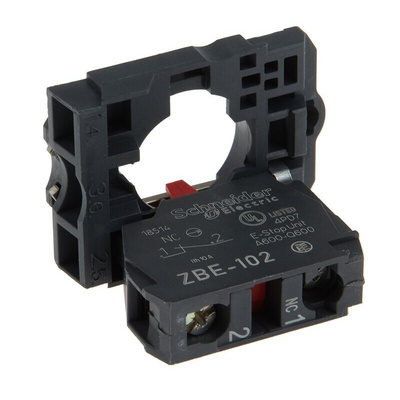

• 1 NC Contact, slow break.


• Screw clamp terminal connection.


• 300000 Durability cycles.


• Silver alloy (Ag/Ni) contacts.


• Vibration and shock resistant.


• Weight 0.075 kg.

Screw Head Shape.

• Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver.

Protection.

• IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102.

Standards.

• JIS C8201-5-,1 EN/IEC 60947-5-5, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60204-1, UL 508, IEC 60364-5-53, EN/IEC 60947-5-4, JIS C8201-1.

Certification.

• CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, GL.
