ZB4BS864, Schneider Electric Harmony XB4 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout

Schneider Electric | Harmony ZB4 Series | Emergency Stop Push Button

The Harmony ZB4 range of modular emergency stop push buttons offers you the reassurance of quality, efficiency and simplicity all in one. Designed with robust, durable material you can use this E-Stop button in a variety of different scenarios and industrial applications.

Features and benefits

• Strong resistance to chemicals (cleaning agents, alcohol, oils & detergents) offering you the flexibility of area of use for your E-stops.


• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel.


• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation. Clear to use trigger action and mechanical latching.


• Simple, easy and quick panel mounting installation, saving you time and effort


• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more.


• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances.

Applications

• Machine & control panels, material handling


• Food/Beverage industries (ideal for use in areas with wash down procedures)


• Commercial applications such as airports, restaurants, office buildings.

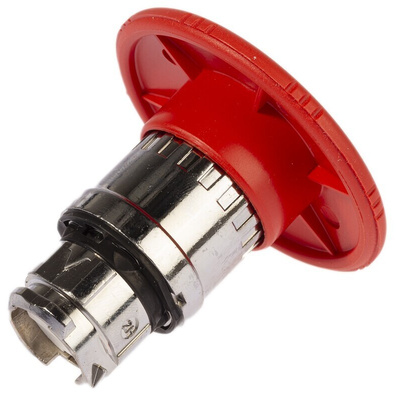

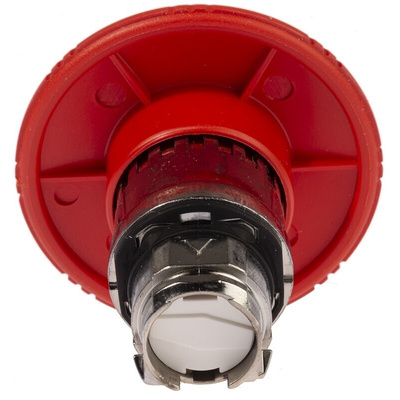

ZB4BS864 Harmony XB4 Emergency Stop Push Button Head.

• Emergency stop / emergency switching off push button.


• ZB4.


• Made from Chromium plated metal.


• 22 mm Diameter.


• Round mushroom (60 mm) shaped head, red (standard), Unmarked.


• Operator trigger action / mechanical latching.


• Turn to release.


• C7 for 4 contacts using single blocks in front mounting


• C8 for 4 contacts using single and double blocks in front mounting


• C11 for 3 contacts using single blocks in front mounting


• C15 for 1 contacts using single blocks in front mounting


• C10 for 4 contacts using single and double blocks in front mounting


• Height 60 mm.


• Width 60 mm.


• Depth 57 mm.


• Net weight 0.093 Kg.


• Lifecycle 3000000 cycles.

Protection.

• IP66 conforming to IEC 60529, IP69, IP69K, NEMA 13, NEMA 4X, NEMA 4, NEMA 12., IK03 to IEC 50102.

Standards.

• UL 508, EN/IEC 60947-5-5, EN/IEC 60204-1, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-5-4, EN/IEC 60947-5-,1 CSA C22.2 No 14, GB 14048.5, JIS C8201-5-1, EN/IEC 60947-1, JIS C8201-1.

Certification.

• RINA, LROS (Lloyds register of shipping), BV, UL listed, DNV, GL, CSA.
