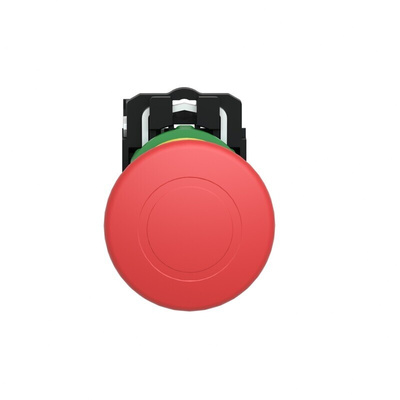

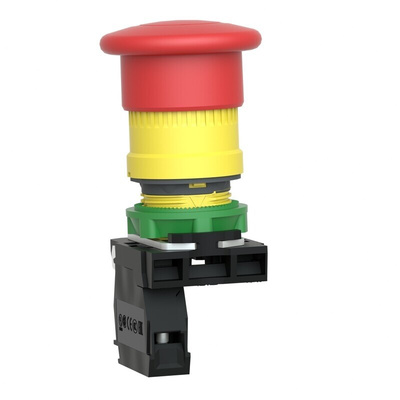

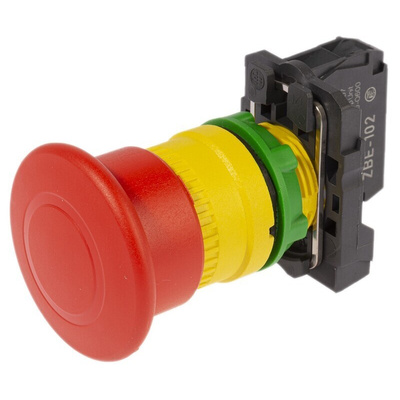

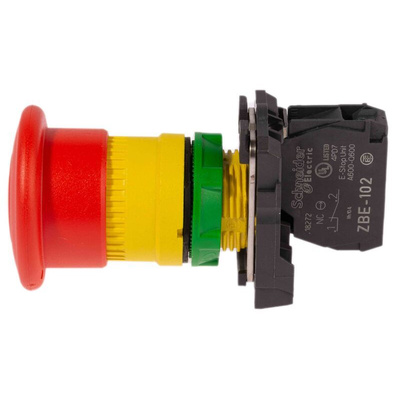

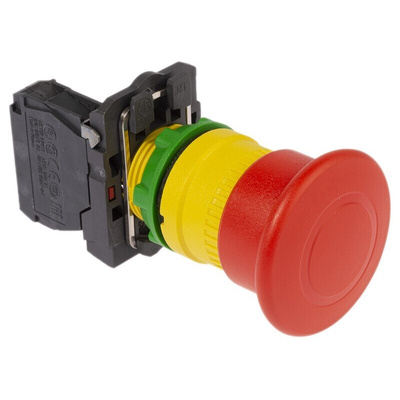

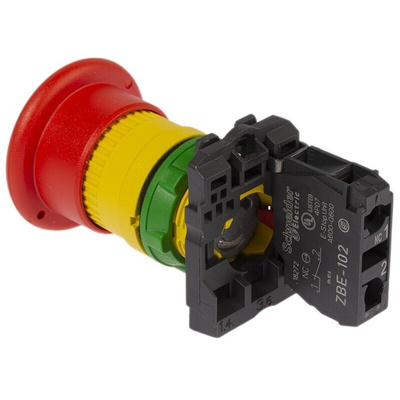

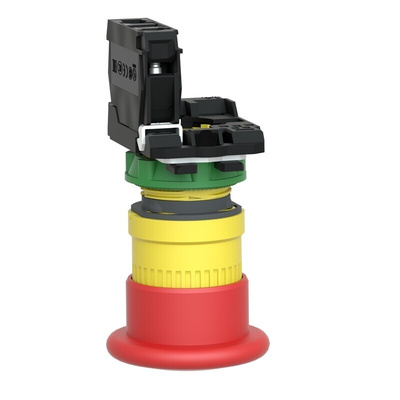

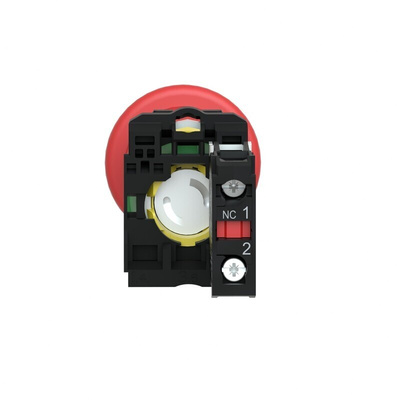

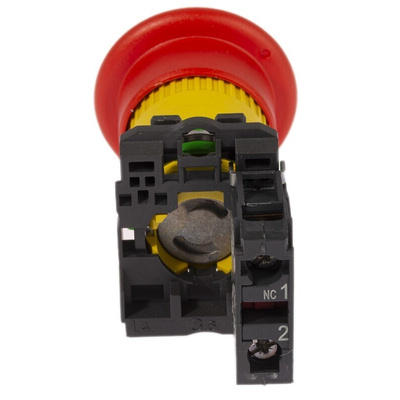

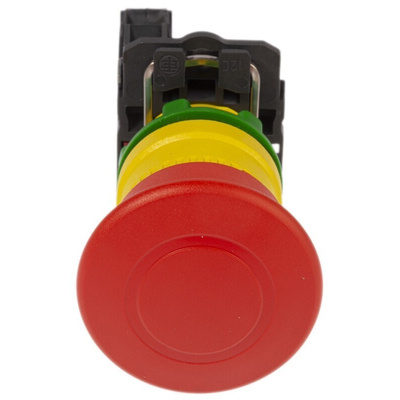

XB5AT842, Schneider Electric Harmony XB5 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP66

Schneider Electric Emergency Stop Push Buttons - Harmony XB5 Series

The Harmony XB5 range of modular emergency stop push buttons offers you the reassurance of quality, efficiency and simplicity all in one. Designed with robust, durable material you can use this E-Stop button in a variety of different scenarios and industrial applications.

Features and Benefits

• Strong resistance to chemicals (cleaning agents, alcohol, oils & detergents) offering you the flexibility of area of use for your E-stops
• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel
• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation
• Simple, easy and quick panel mounting installation, saving you time and effort
• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more
• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances
Protection ratings -
• Conformity with IEC, UL, CSA & CCC EAC standards as well as JIS, CE marking (Marine approvals)
• IP 66 rated (Dust-tight, with no ingress of dust + water protection i.e. powerful jets of water)
• IP 67 rated (Push button is protected against short term immersion)
• IP 69 & 69K (E-stop is protected against close-range high pressure, specifically high-temperature spray downs up to 7,000,000 Pa at 55 °C, distance 0.1 m)
• Shock protection as standard, levelling up to IK03 rating
• NEMA 4X & NEMA 13 remarkably resistant to corrosion and severe environments, dust and water

Applications

• Machine & control panels, material handling
• Food/Beverage industries (ideal for use in areas with wash down procedures)
• Commercial applications such as airports, restaurants, office buildings

Schneider Electric Emergency Stop Push Button, 600V AC Voltage Rating, 65g Weight - Harmony XB5 Series - XB5AT842

Need a safety device that halts operations when things get risky? Choose this emergency stop push button from Schneider Electric. It cuts off machinery in an instant to prevent injuries and machine damage in hazardous situations. With a lifespan of 100,000 electrical cycles, this unit has the oomph to deliver long-lasting performance. Rated up to IP69K, it's dust-tight and withstands high-temperature, high-pressure water sprays, so it's suitable for heavy-duty indoor and outdoor use. Thanks to the push button's compact dimensions of 40 (W) x 43 (H) x 82mm (D), it saves space on crowded industrial panels.

Features & Benefits

• Regulation 22mm diameter cutout fits in standard panels
• Performs without a hiccup in temperatures between -40°C and +70°C
• Light weight of 65g puts minimal strain on your panel

Applications

• Automated factory lines
• Medical imaging systems
• Access controls
• Pharmaceutical manufacturing
• Milling operations

How does this emergency stop push button work?

You push it in to stop operations and pull it out again when the fault has been cleared. The latching switch keeps it in the selected position to prevent accidental reactivation before it's safe.

Can I use this emergency stop push button with setups that vibrate?

Yes. It's shock-resistant to prevent disconnections caused by jostling.
