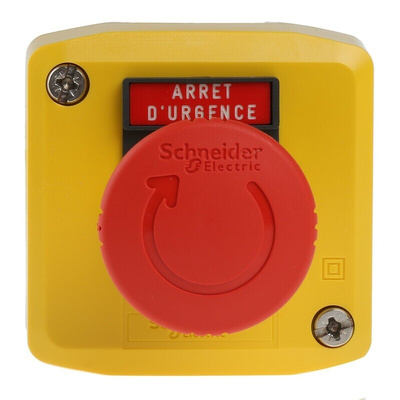

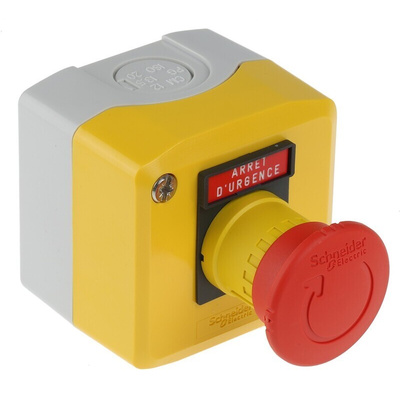

XALK1781, Schneider Electric Harmony XALK Series Twist Release Emergency Stop Push Button, Surface Mount, 1NC

Schneider Electric Emergency Stop Push Buttons - Harmony XALK Series

The Harmony XALK range of Emergency Push Stop Buttons by Schneider offers you reliable, durable and stable mounted push buttons for all your safety needs.

Made for those situations where an effective halt to all operations is needed, this button gives you and your users quick cut off action to machinery and other equipment that could pose a risk to the health of yourself or other users. Quality is assured with this premium range, the safety of all key users is important, therefore these emergency stop push buttons are made to be durable and reliable in those emergency-like situations.

Features and Benefits

• Easy to use "turn to release" functionality for easy reset once activated
• Light grey RAL 7035 base enclosure, with a yellow RAL 1021 cover colour and a prominent, bold red push button for easy identification to its function
• Durable Polycarbonate material, easy to clean and maintain with added durability for extended use (mechanical durability of 300,000 cycles)
• Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1
• Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more
• Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)
• IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers or splashes of water
• Schneider Green Premium product as standard across the XALK Emergency Stop Button range
• 18-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement)
• Service sectors such as restaurants, kitchens, car washes and more

Schneider Electric Emergency Stop Push Button - XALK1781

• Created and designed to turn off machinery in the event of an emergency, featuring an emergency switching off function
• Forms part of the Harmony XALK range of products
• The base colour is light grey whilst the cover colour is yellow
• Comprised of a polycarbonate material
• Red mushroom operator profile with marking on legend holder
• Turn to release to rest
• Mechanically durable for up to 3000000 cycles
• The connection terminals are - Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 and screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
