XALK188, Schneider Electric Harmony XALK Series Key Release Emergency Stop Push Button, Surface Mount, 1NC, IP66, IP67,

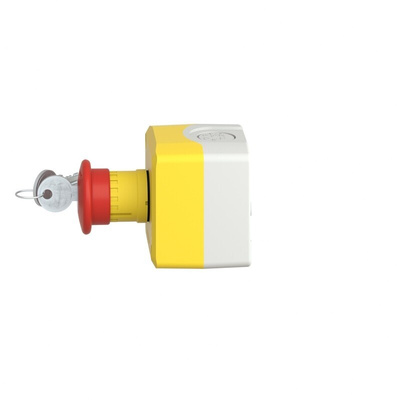

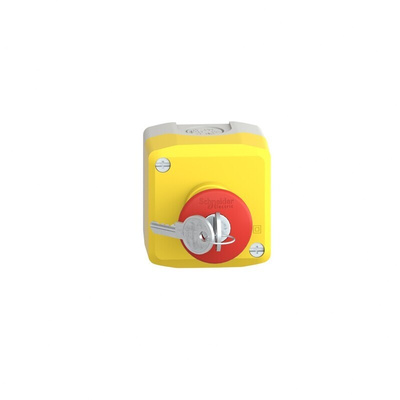

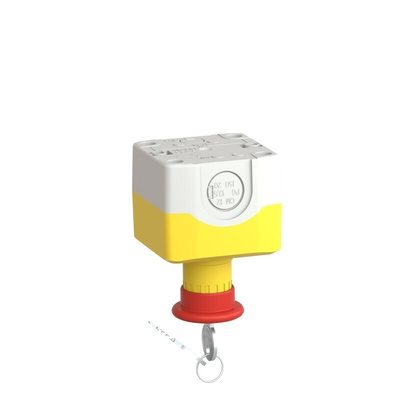

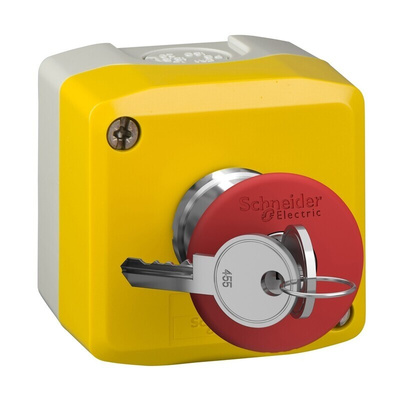

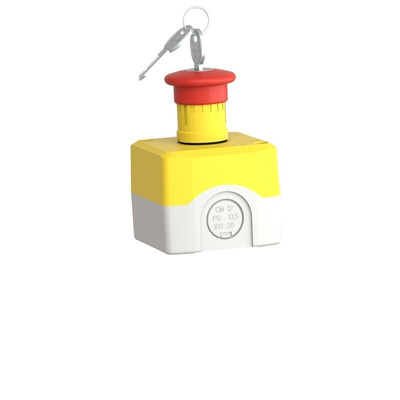

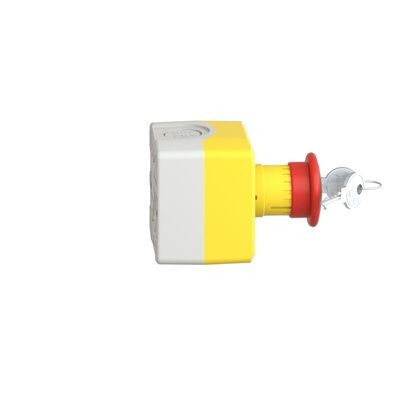

Schneider Electric Red/Yellow Emergency Stop Station, Key Release, Surface Mount - Harmony XALK Series - XALK188

This Schneider Electric emergency stop station is designed to be mounted directly onto a wall, control lectern or vehicle panel. It has one NC (normally closed) contact, meaning that power to your machine is cut when the button is pushed. The button can only be released with a key to ensure that dangerous situations are resolved before the machine can run again. A 10A cartridge fuse provides short-circuit protection, preventing electrical shocks and damage to your equipment. To make this unit suitable for demanding industrial environments, its bezel is made from impact-resistant polycarbonate, while its silver-alloy contacts are highly conductive and corrosion-resistant.

• Screw-clamp connectors for a secure connection
• Voltage rating of 600V AC, so suited to high-power applications
• Combines bright red and yellow colours for immediate identification in an emergency
• Compact dimensions of 68 (H) x 68 (W) x 105.5mm (D) to save space on busy panels

Applications

• Boating industry
• Remote electrical control boxes
• Lighting rigs

Can I use this E-stop station in high-heat environments?

Yes, thanks to its broad operating temperature range of -40°C to +70°C, this unit is suitable for use in both very hot and very cold environments.
