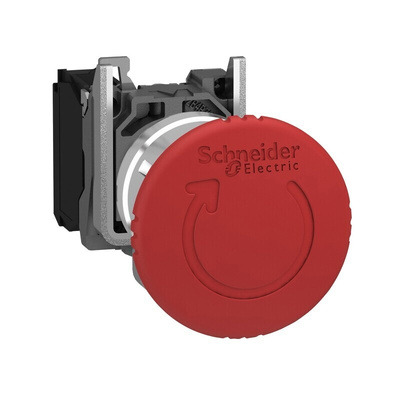

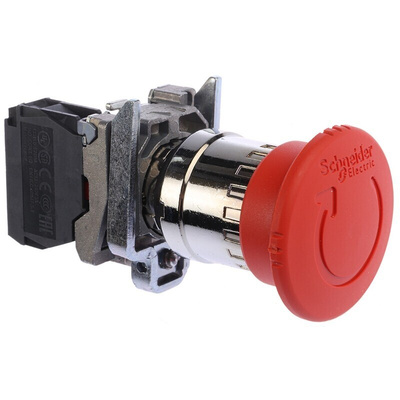

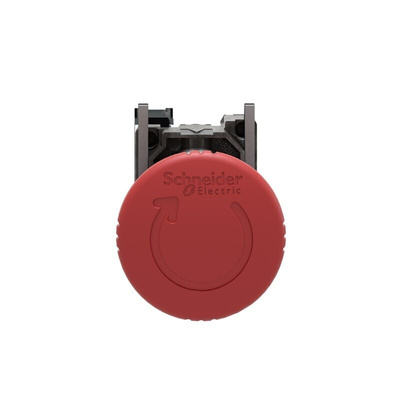

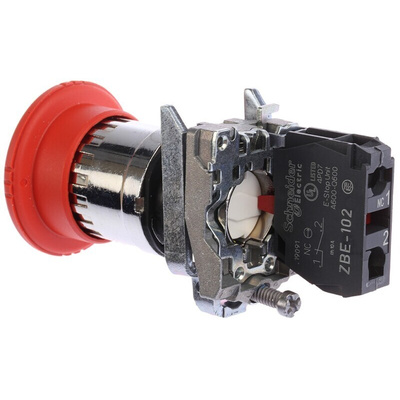

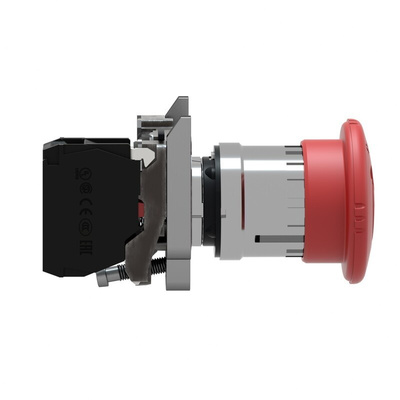

XB4BS8442, Schneider Electric Harmony XB4 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP66,

Schneider Electric Harmony XB4 Series - Emergency Stop Push Button

Introducing the world-class Harmony XB4 series of emergency stop pushbuttons by Schneider Electric. The range of XB4 provides you with an extra safeguard in your working environment. The products within the XB4 series are notably durable and can perform well within various environments.

Features and benefits

• Effortless to use "turn to release" functionality for easy reset once activated


• Chromium plated metal panel with prominent red round push button, easily alerting to the eye


• 2 NC contacts, for simple configuration


• Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1


• Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more


• Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)


• The XB4 E-Stop buttons have a mechanical durability of 300000 cycles


• The base unit E-Stop works well in temperatures ranging from -40°C to 70°C


• IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers at 7,000,000 Pa at 55 degrees celsius


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 8-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement).


• Service sectors such as restaurants, kitchens, car washes and more.

Schneider Electric Emergency Stop Push Button, 40mm Actuator Diameter, Screw Clamp Terminals - Harmony XB4 Series - XB4BS8442

Put the brakes on faulty machinery with this emergency stop push button from Schneider Electric. It cuts power to your circuit when you push it, making it safe to inspect your equipment. The unit's twist-release actuator stays latched until you've addressed the fault, so there's no need to worry about accidental reactivation. Compatibility with a commonly used cutout diameter of 22mm makes the unit a sure fit for standard panels. It has an IP69K rating, meaning it's sealed against dust and handles the high-temperature, high-pressure water jets you'd expect in hygiene-critical settings.

Features & Benefits

• Flat button head with a diameter of 40mm for ease of operation, even in gloves
• Silver alloy contacts are highly conductive and resistant to corrosion, so you get a reliable connection
• Bright red actuator stands out on a crowded panel
• Long electrical lifespan of 1 million operations for long-lasting performance

Applications

• Workshops
• Packaging lines
• Manufacturing industry

Do I need to assemble this push button before installation?

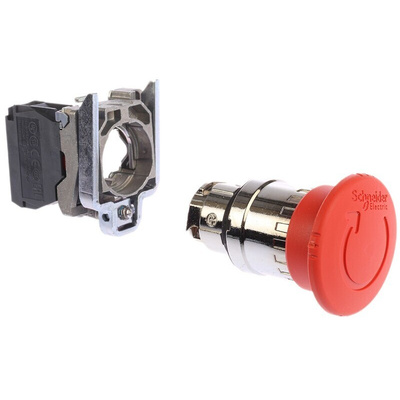

No, this product comes as a pre-assembled actuator and contact block, so you can get straight to installation.
