XB4BT842, Schneider Electric Harmony XB4 Series Pull Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC

Schneider Electric Harmony XB4 Series - Emergency Stop Push Button

Introducing the world-class Harmony XB4 series of emergency stop pushbuttons by Schneider Electric. The range of XB4 provides you with an extra safeguard in your working environment. The products within the XB4 series are notably durable and can perform well within various environments.

Features and benefits

• Effortless to use "turn to release" functionality for easy reset once activated


• Chromium plated metal panel with prominent red round push button, easily alerting to the eye


• 2 NC contacts, for simple configuration


• Short-circuit protection using a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1


• Conforming to several industry standards including, EN/IEC 60204-1, 60947-1, 60947-5-1 and more


• Rated NEMA 13 & NEMA 4X, providing additional protection against environmental disturbances such as dust, oil or spraying of water (primarily fit for indoor use)


• The XB4 E-Stop buttons have a mechanical durability of 300000 cycles


• The base unit E-Stop works well in temperatures ranging from -40°C to 70°C


• IP 65, IP 66, IP 67 & IP 69K rated conforming to IEC 60536, further protecting your device from dust ("dust tight rated") and protected against heavy seas or powerful jet washers at 7,000,000 Pa at 55 degrees celsius


• Schneider Green Premium product as standard across the XB6 Emergency Stop Button range


• 8-month manufacturer warranty with Schneider

Applications

• Machine, chemical & Marine applications (particularly with water/chemical involvement).


• Service sectors such as restaurants, kitchens, car washes and more.

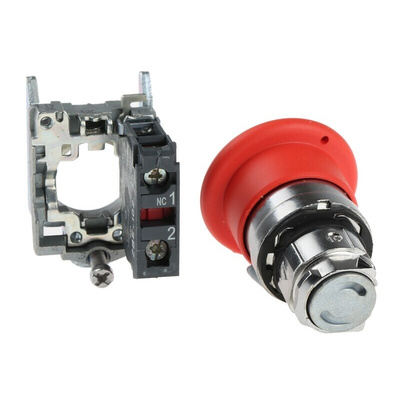

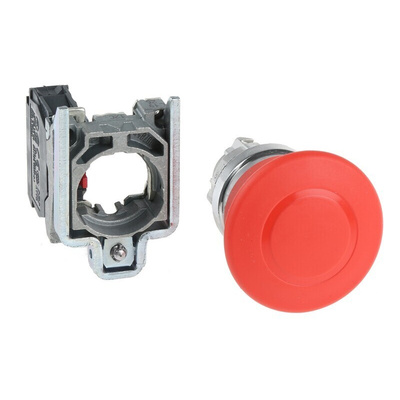

XB4BT842 Harmony XB4 Emergency Stop Push Button.

• Emergency stop / emergency switching off push button.


• XB4.


• Made from Chromium plated metal.


• Zamak fixing collar.


• 22 mm Diameter.


• Round mushroom (40 mm) shaped head, red (standard).


• Operator trigger action / mechanical latching.


• Push-pull reset.


• 1 NC.


• Slow break.


• Screw clamp terminals.


• Height 47 mm.


• Width 40 mm.


• Depth 82 mm.


• Net weight 0.125 Kg.


• Lifecycle 3000000 cycles.


• Contact material silver alloy (Ag/Ni).

Protection.

• IP66 conforming to IEC 60529, IP67, IP69, IP69K, NEMA 13, NEMA 4X, IK06 conforming to IEC 50102.


• Electrical shock Class I conforming to IEC 60536.

Standards.

• EN/IEC 60947-5-1, EN/IEC 60204-1, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-1, EN/IEC 60947-5-5, CSA C22.2 No 14, JIS C8201-1.

Certification.

• DNV, GL, LROS (Lloyds register of shipping), RINA, CSA, UL listed, BV.
