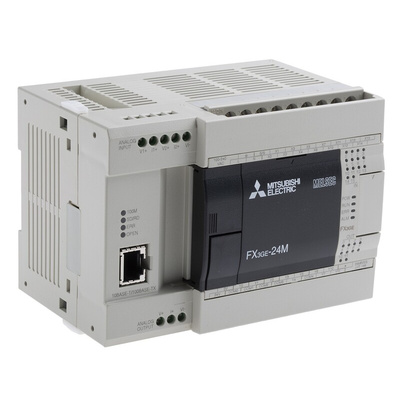

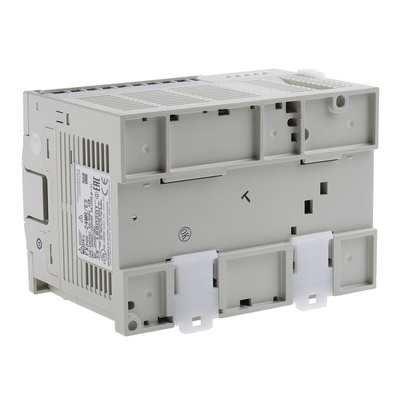

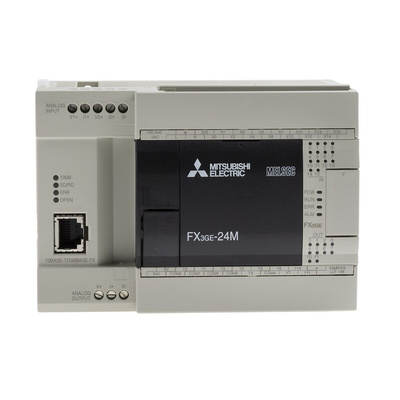

FX3GE-24MR/ES, Mitsubishi FX3GE Series PLC CPU for Use with FX3 Series, Relay Output, 14-Input, DC Input, ПЛК

Mitsubishi PLC CPU

The Mitsubishi FX series 3rd generation basic, compact and compatible programmable logic controller (PLC) has 256 I/O points and an Ethernet port. This PLC has 2 analogue/14 digital inputs and 1 analogue /10 digital output. It has 32k steps program capacity and has 14 built-in inputs. This FX3G CPU's are compatible with existing FX2N & FX3U expansion modules including the recently introduced FX3U-ADP expansion modules and it may be used as a replacement for FX1N PLC's. This sub-compact PLC offers extremely fast program execution, accepts up to eight special function modules, provides maximum flexibility and control power for a wide range of automation applications. It has built-in Ethernet communications and analogue I/O to provide a cost-effective micro PLC.
The FX3G can be recognized as the successor to the FX1N that will continue the concept of combining performance with affordability. Furthermore backwards compatibly allows the FX3G to slip into existing FX1N applications with minimal redesign required.,FX3G CPU's are compatible with existing FX2N & FX3U expansion modules, including the recently introduced FX3U-ADP expansion modules, and may be used as a replacement for FX1N PLC's. This sub-compact PLC offers extremely fast program execution, accepts up to eight special function modules and provides maximum flexibility and control power for a wide range of automation applications. The FX3G will be supported by GX-Developer FX from Version 8.72A onwards.

Features and Benefits

Highly flexible
Embedded Ethernet communications port
Supply voltage rating ranges between 100VAC and 240VAC
Dual bus architecture
Integrated real-time clock
Easy programming with large instruction set and table positioning configuration
Built-in USB port for the programming communication function to enable high-speed communication at 12Mbps
Control of up to 128 directly connected I/O or up to 256 I/O with CC-Link remote I/Os
Two built-in variable analogue potentiometers available for adjusting the timer set time
Programming with GX Works2
Operation temperature ranges between 0°C and 55°C

Applications

Industrial automation
Robotics
Automobile industry

Certifications

CE
UL listed
cUL listed
