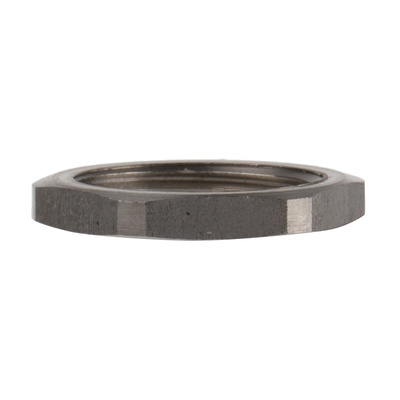

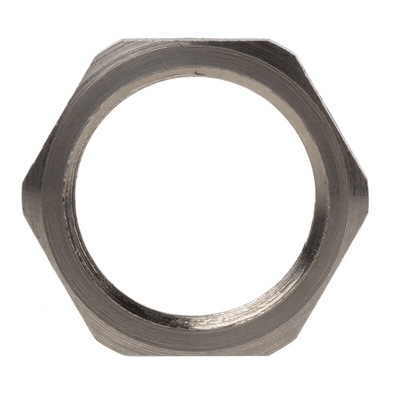

52032615, Lapp Silver Stainless Steel Cable Gland Locknut, M16 Thread, IP68, Гайка

Skintop Chromium Nickel Steel Locknuts

From Lapp, the Skindicht SM-M INOX steel lock nut combines with cable glands to provide a secure and reliable connection in through-holes and walled housings. With a simple screw-on action, it counters corresponding Skindicht cable glands in pre-drilled, unthreaded holes.

This Skindicht series of locknuts have a robust chrome nickel steel construction which offers excellent mechanical resistance, as well as chemical resistance.

Features and Benefits

• Mechanical Resistance
• Chemical Resistance
• Operating Temperature -60°C to +200°C

Applications

The Skindicht SM-M INOX counter nut can be used with corresponding cable glands to help terminate and seal cable into electrical equipment, enclosures and conduit. Its chemical resistance makes it ideal for petrochemical applications, while its stainless steel construction means it can work with INOX cable glands in specialist environments.

• Pharmaceutical and petrochemical industry
• Offshore sector
• Wind Power Plants
• Brickworks

Accessories

This counter nut is compatible with corresponding Skintop INOX Cable Glands.

• 796-0035 is a M16 x 1.5 Skintop INOX Cable Gland
• 796-0044 is a M20 x 1.5 Skintop INOX Cable Gland
• 796-0047 is a M25 x 1.5 Skintop INOX Cable Gland
• 796-0041 is a M32 x 1.5 Skintop INOX Cable Gland
• 796-0050 is a M16 x 1.5 Skintop INOX-R Cable Gland
• 796-0053 is a M20 x 1.5 Skintop INOX-R Cable Gland
• 796-0057 is a M25 x 1.5 Skintop INOX-R Cable Gland
• 796-0066 is a M32 x 1.5 Skintop INOX-R Cable Gland

Standards

EN50262,Body:DIN 1.4305, Ineer seal & O-Ring: FPM, CE,RoHS

LAPP Cable Gland Locknut, Screw-On Mounting, 2.8mm Thickness - SKINDICHT Series - 52032615

Set the seal on your wire connection with this cable gland locknut from LAPP. It's designed to tighten the gland to the body of your machine, preventing it from coming loose. The threaded structure lets you quickly screw it on without the need for any tools, making installation a cinch. You can rest assured that it stands up to the rigours of harsh industrial environments, thanks to its broad operating temperature range of -25°C to +200°C.

Features & Benefits

• Robust FPM O-ring helps keep out dirt and moisture particles
• M16 thread size for compatibility with standard components

Applications

• Medical and pharmaceutical industry
• Chemical plants
• Power stations
• Electrical engineering

What's this locknut made from?

This locknut is made from rugged chromium nickel steel that stands up to impact and corrosion.
